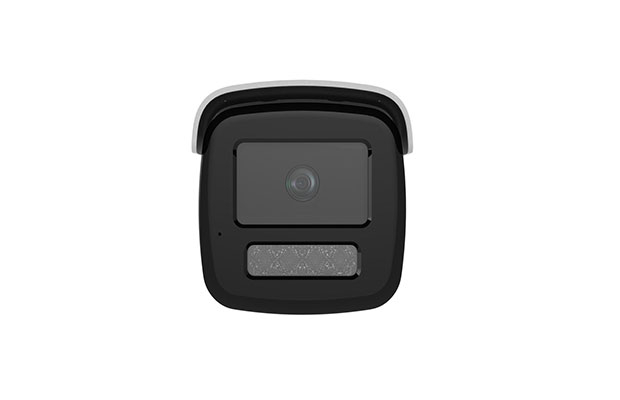

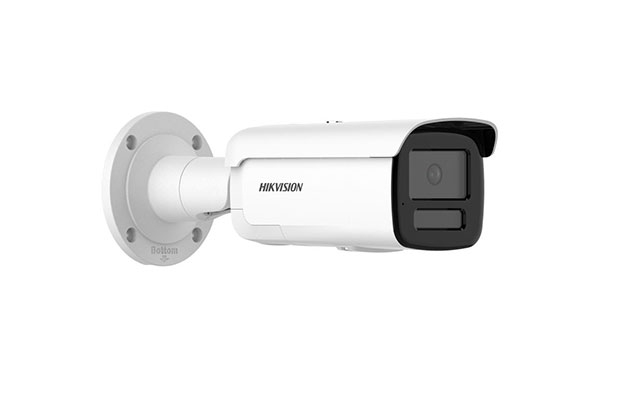

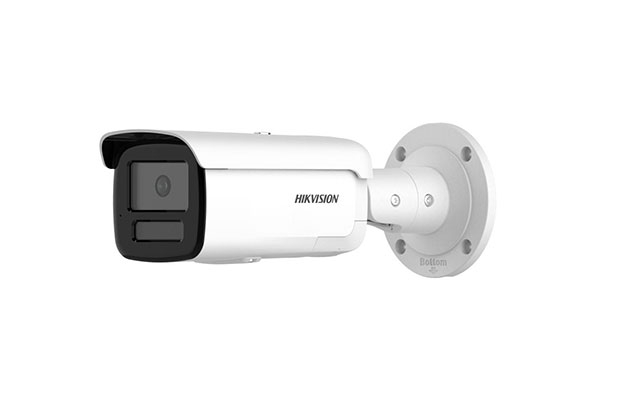

Hikvision DS-2CD2T86G2-ISU/SL 4K (8MP) AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
$135.00
- Part Number: DS-2CD2T86G2-ISU/SL
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Warranty: 1 Year on Parts.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD2T86G2-ISU/SL
- Camera
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 110°, vertical FOV 58°, diagonal FOV 134°
- Focal Length & FOV: 4 mm, horizontal FOV 88°, vertical FOV 50°, diagonal FOV 100°
- Focal Length & FOV: 6 mm, horizontal FOV 59°, vertical FOV 34°, diagonal FOV 67°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI
- DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
- DORI 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
- DORI 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
- Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream
- 50 Hz:
- 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host Up to 32 users
- 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch: Yes
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 4 regions of privacy mask
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes
- Built-in Speaker: Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.
- Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2KΩ, interface type: non-equilibrium;
- Audio: 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: Visual alarm
- 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
- Linkage: Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, white light flashing
- Deep Learning Function
- Face Capture: Yes
- General
- Power: 12 VDC ± 25%, 1.17 A, max. 14 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17 W
- Dimension: 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
- Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1")
- Weight: Approx. 1130 g (2.5 lb.)
- With Package Weight: Approx. 1654 g (3.6 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams
- Approval
- EMC FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- IC: ICES-003: Issue 7
- KC: KN32: 2015, KN35: 2015
- Safety UL: UL 62368-1
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
- Warranty: 1 Year on Parts.
