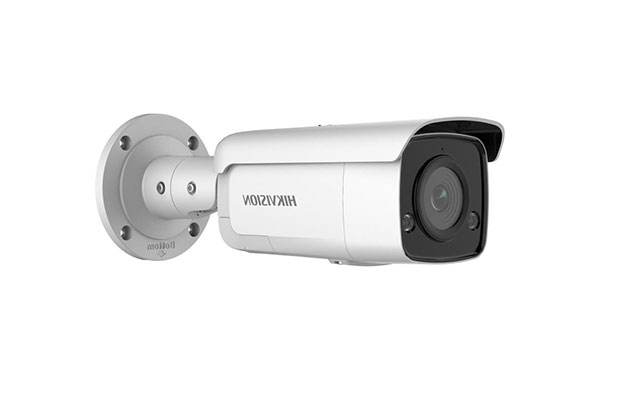

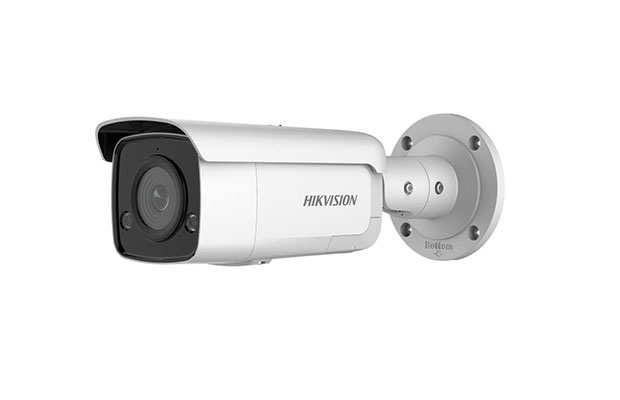

Hikvision DS-2CD2T66G2-ISU/SL 6MP AcuSense Fixed Dome Network Camera
$128.00
- Part Number: DS-2CD2T66G2-ISU/SL
- 6 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology, Supplement Light Range up to 60 m
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Warranty: 1 year on part
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD2T66G2-ISU/SL
- Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max. Resolution: 3200 × 1800
- Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
- 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI
- DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
- 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
- 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
- Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
- Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
- User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200,Hik-Connect,Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch: Yes
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch: Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In Microphone: Yes
- Built-In Speaker: Max. power concumption: 2 W, max. sound pressure: 10 cm: 97 dB
- Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block,, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Reset Key: Yes
- Alarm: 1 input, 1 output (max. 24 VAC/VDC, 1A)
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
- Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning,strobe light
- Deep Learning Function
- Face Capture: Yes
- General
- Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material: X
- Dimension: Ø105 mm × 287.6 mm (Ø4.1" × 11.3")
- Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight: Approx. 1155 g (2.5 lb.)
- With Package Weight: Approx. 1659 g (3.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
- Approval
- EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015, IC: ICES-003: Issue 7
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
- Warranty: 1 Year on part.
