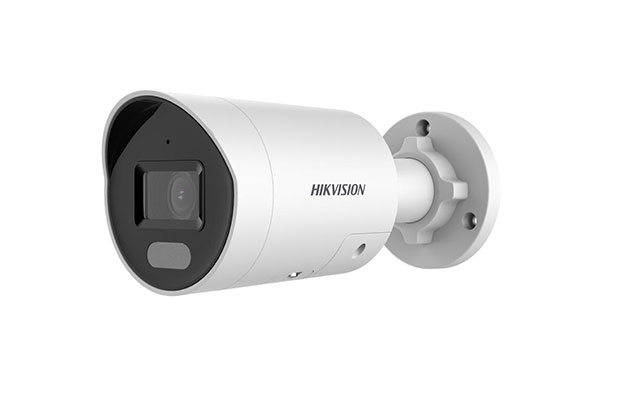

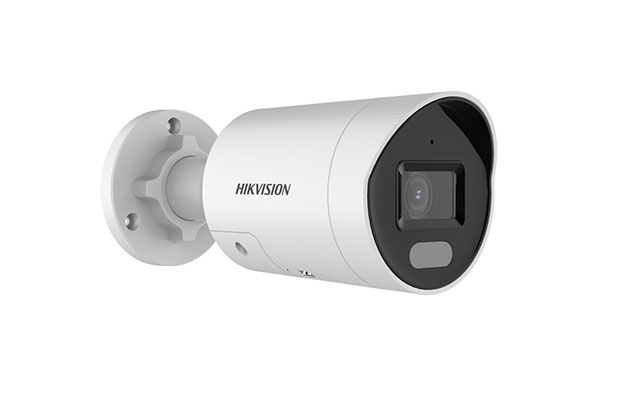

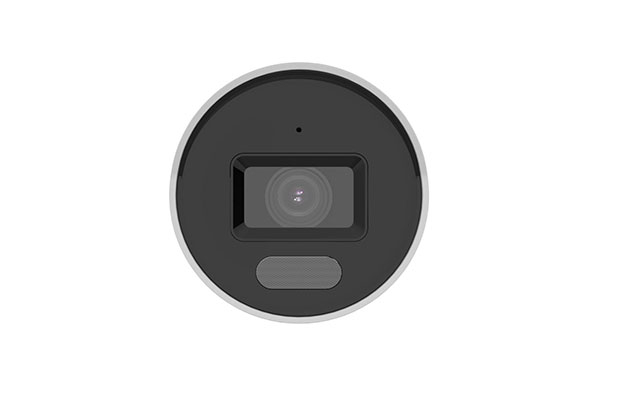

Hikvision DS-2CD2047G2-LU/SL 4MP ColorVu Strobe Light and Audible Warning Fixed Mini Bullet Network Camera
$124.00
- Part Number: DS-2CD2047G2-LU/SL
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Warranty: 1 year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD2047G2-LU/SL
- Camera
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: 1/3 s to 1/100,000 s
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV: 2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
- - 4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
- - 6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 2.8 mm: 3.1 m to ∞, 4 mm: 5.4 m to ∞, 6 mm: 12.1 m to ∞
- DORI
- DORI: 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
- - 4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
- - 6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m
- Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 40 m
- Smart Supplement Light: Yes
- Video
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- *Third stream is supported under certain settings.
- Video Compression: Main stream: H.265/H.264/H.265+/H.264+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- *Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.265 and H.264 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes
- Built-in Speaker: 1.2 W, 10 cm: 95 dB
- Alarm: NA
- Reset Key: Yes
- Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
- Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output
- Deep Learning Function
- Face Capture: Yes
- General
- Power: 12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A , max. 7.5 W
- Dimension: Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")
- Package Dimension: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") Approx. 510 g (1.1 lb.)
- With Package Weight Approx. 760 g (1.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMC: FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
- RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015
- Safety UL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
- CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU;
- Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
- Warranty: 1 year on part.
