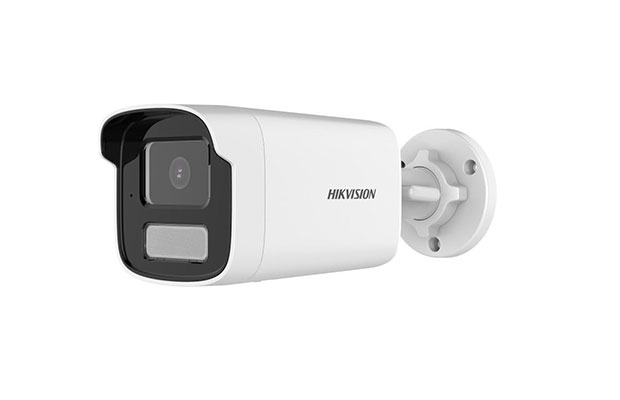

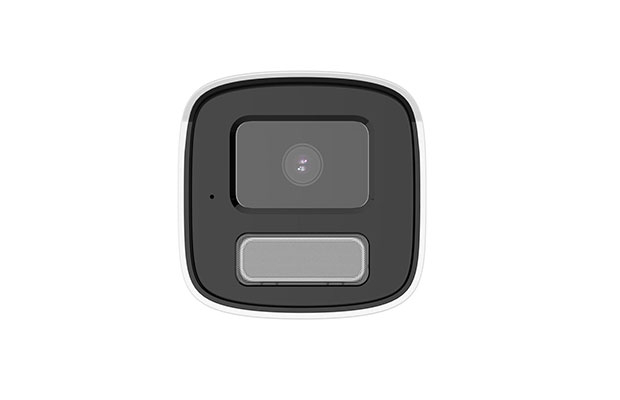

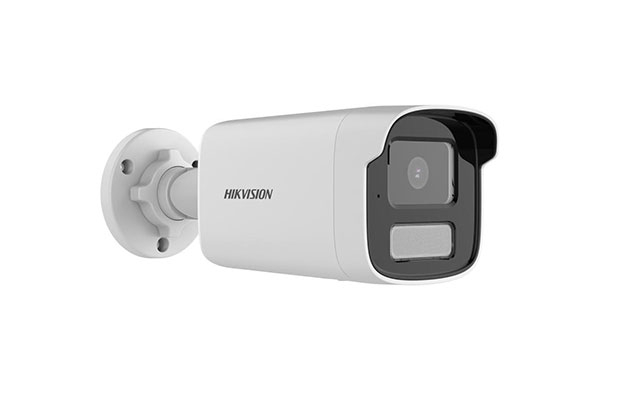

Hikvision DS-2CD1T63G2-LIU 6MP Smart Hybrid Light Fixed Bullet Network Camera
$79.00
- Part Number: DS-2CD1T63G2-LIU
- High quality imaging with 6 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
- Warranty: 1-years on part
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD1T63G2-LIU
- Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max. Resolution: 3200 × 1800
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 4 and 6 mm optional
- Focal Length & FOV: 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Focal Length & FOV: 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
- Iris Type: Fixed
- Lens Mount: M12
- Aperture: F1.6
- DORI
- DORI: 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
- DORI: 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
- Illuminator
- Supplement Light Range: Up to 50 m
- Smart Supplement Light: Yes
- Supplement Light Type: IR,White Light
- IR Wavelength: 850 nm
- Video
- Main Stream
- 50 Hz:
- 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- H.265 Type: Main Profile
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 1 fixed region for main stream
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Network
- Web Browser: Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Client: iVMS-4200,Hik-Connect
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Image
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask: 4 programmable polygon privacy masks
- Interface
- On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Reset Key: -F: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General
- Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material: Metal & Plastic
- Dimension: 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")
- Package Dimension: 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- With Package Weight: Approx. 635 g (1.4 lb.)
- Weight: Approx. 580 g (1.3 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- Protection: IP67: IEC 60529-2013
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
- RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- Warranty: 1-years on part
