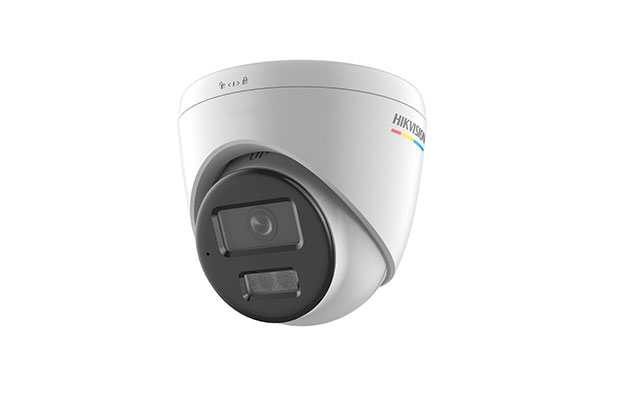

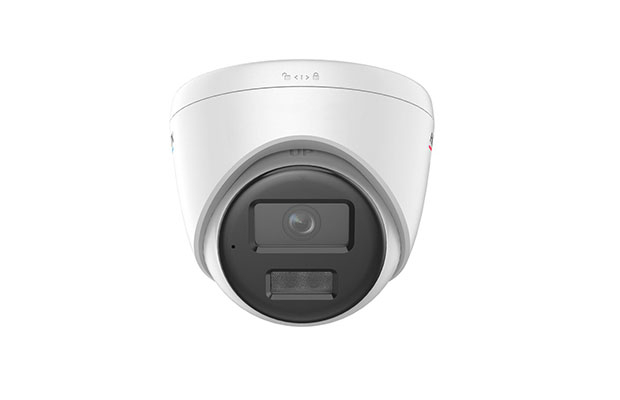

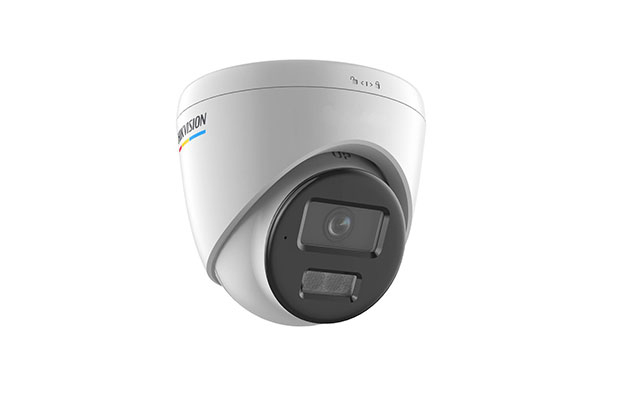

Hikvision DS-2CD1367G3-LIU 6MP ColorVu 3.0 Fixed Turret Network Camera
$83.00
- Part Number: DS-2CD1367G3-LIU
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- /SL/SRB: Provide real-time security via built-in two-way audio and strobe light alarm
- -F: Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67)
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD1367G3-LIU
- Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max. Resolution: 3200 × 1800
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130°
- Focal Length & FOV: 4 mm, horizontal FOV 89°, vertical FOV 49°, diagonal FOV 105°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 2.8 mm: 1.9 m to ∞
- Depth of Field: 4 mm: 2.4 m to ∞
- DORI
- DORI: 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
- DORI: 4 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream 50 Hz:
- 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz:
- 20 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz:
- 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Client: iVMS-4200,Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch: Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Transducer
- Transducer Type: NA
- Detection Angle: NA
- Detection Range: NA
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Built-in Speaker: -LIU、-LIUF: NA
- Audio: NA
- Alarm: NA
- Reset Key: -LIU、LIU/S(L)(RB)：NA
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- Linkage: -LU: Upload to FTP, notify surveillance center, send email, trigger capture
- General
- Power: -LIU/-LIUF: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W,
- Material: Metal & Plastic
- Dimension: Ø110 mm × 102.7 mm (Ø4.33" × 4.04")
- Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- Weight: -LIU: Approx. 390g (0.9 lb.)
- With Package Weight: -LIU: Approx. 580g (1.3 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General Function: Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light: -LIU、-LIUF： NA
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- Warranty: 1 Year on part.
