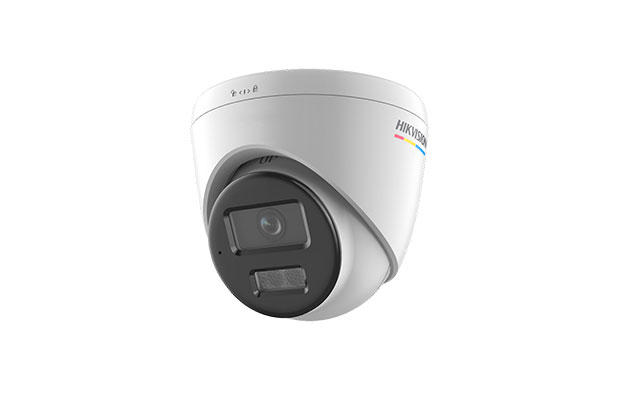

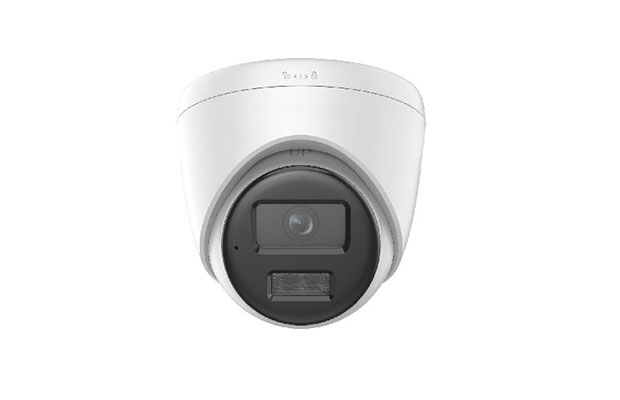

HikVision DS-2CD1347G2H-LIUF/SL 4MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera
$83.00
- Part Number: DS-2CD1347G2H-LIUF/SL
- High quality imaging with 4 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- Provide real-time security via built-in two-way audio and strobe light alarm
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
- Warranty 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD1347G2H-LIUF/SL
- Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- -2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
- -4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- DORI
- DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
- DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream 50 Hz:
- 20 fps (2560 × 1440)
- 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (2560 × 1440)
- 24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 1 fixed region for main stream
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
- Client: iVMS-4200,Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch: Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Built-in Speaker: 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB.
- Reset Key: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- Linkage: Upload to memory card, upload to FTP, trigger recording,notify surveillance center,send email,trigger capture
- General
- Power: 12 VDC ± 25%, 0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 8.0 W
- Material: Metal & Plastic
- Dimension: Ø110 mm × 102.7 mm (Ø4.33" × 4.04")
- Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- Weight: Approx. 400 g (0.9 lb.)
- With Package Weight: Approx. 646 g (1.4 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light: /SRB model: Red and Blue Light
- Flashing Light: /SL model: White Light
- Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013.
