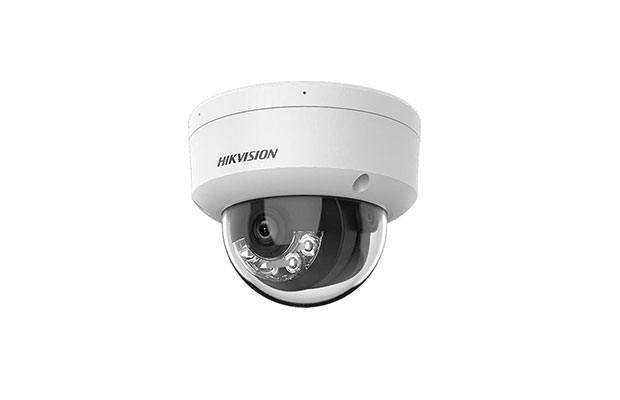

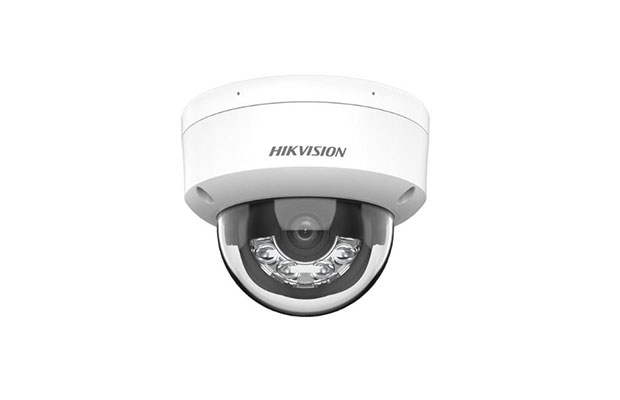

Hikvision DS-2CD1123G2-LIUF 2MP Smart Hybrid Light Fixed Dome Network Camera
$55.00
- Part Number: DS-2CD1123G2-LIU(F)
- High quality imaging with 2 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67) and vandal resistant (IK08)
- Warranty: 1 Year on Part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Camera
- Image Sensor: 1/2.9" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
- 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI
- DORI: 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
- DORI: 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Rang: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 1 fixed region for main stream
- Audio
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Client: iVMS-4200,Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR): Digital WDR
- SNR: ≥ 52 dB
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask: 4 programmable polygon privacy masks
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes
- Reset Key: -F: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material: Metal & Plastic
- Dimension: Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")
- Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight: Approx. 550 g (1.2 lb.)
- With Package Weight: Approx. 800 g (1.8 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian: General Function
- Heartbeat,anti-banding,mirror,password protection,password reset via email
