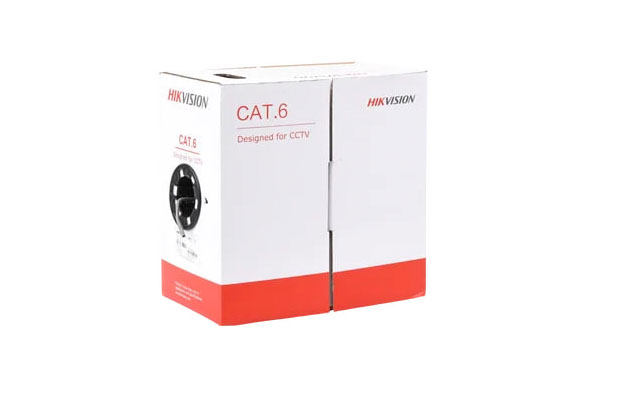

Hikvision 305m CAT6 UTP Network Cable (Solid Copper, 0.55mm) Gray (DS-1LN6U-G)
$129.00
- Part Number: DS-1LN6U-G (Gray)
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.55mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-1LN6U-G (Gray)
- Accessories
- Category: Cat.6
- Steath printing: HIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
- Reference standard: ISO/IEC11801,ANSI/TIA-568-C.2,RoHS 2.0
- Fire resistance: No
- Conductor: Solid-Bare Copper (99.95%);0.55±0.005 mm，23 AWG
- Insulation: HDPE;0.98±0.05 mm
- Rip-cord: Yes
- Separator: Yes
- Sheath physical properties
- Before aging: Tensile strength ≥ 13.5 Mpa;Elongation ≥ 150%
- Aging period: 100 ℃ × 24h × 10d
- After aging: Tensile strength ≥ 12.5Mpa;Elongation ≥ 125%
- Cold bend: -20 ± 2℃ × 4h，8 × cable O.D,no visible cracks
- Electrical Characteristics(20℃)
- 1.0-250.0 MHz impedance: 100 ± 15Ω @ ≤ 100MHz；100 ± 25Ω @ 100-250MHz
- 1.0-250.0 Mhz delay skew: ≤ 45 ns/100 m
- DC resistance: ≤ 9.38 Ω/100 m
- DC conductor resistance unbalance: ≤ 5.0 %
- Package dimension: 400 mm (W) × 400 mm (H) × 240 mm (D)(15.75″ × 15.75″ × 9.45″)
- 12.3 ± 0.5kg
- Cable length: (305 ±1.5) m
- Ambient temperature: -20 ℃ to 75 ℃ (-4℉ to 167℉)
- Operating voltage: 60 V
- Sheath
- Thickness: 0.5±0.10 mm
- Material: PVC
- Color: Grey
- Diameter: 6.00±0.30 mm
