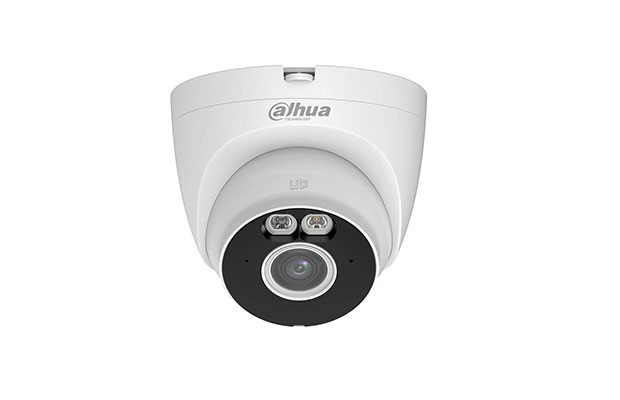

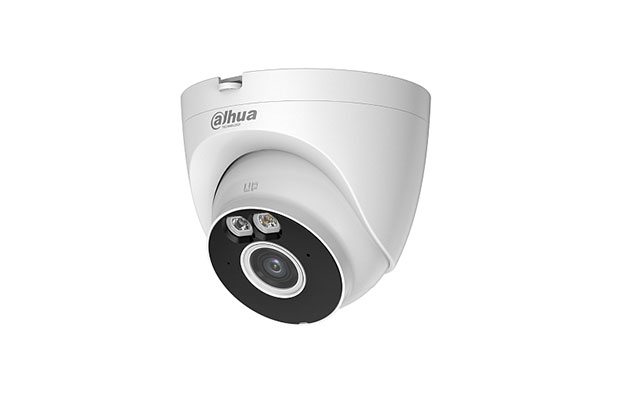

Dahua DH-T3A-IL 3MP Fixed-focal Wi-Fi Turret Network Camera
$39.00
- Part Number: DH-T3A-IL
- Image Sensor: 1/2.8" CMOS
- Max. Resolution: 2304 (H) × 1296 (V)
- P67 Protection
- Wi-Fi 6 Delivers High Speed with Strong Anti-Interference Performance
- Fast Pairing with Bluetooth
- AI Human & Vehicle Detection
- Hear What’s Happening with A Built-in Mic
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-P8F-PV
- Camera
- Image Sensor: 1/2.8" CMOS
- Max. Resolution: 2304 (H) × 1296 (V)
- Min. Illumination:
- - 0.005 [email protected] (Color, 30 IRE)
- - 0.0005 [email protected] (B/W, 30 IRE)
- - 0 lux (Illuminator on)
- Illumination Distance:
- - Up to 30 m (98.43 ft) (IR)
- - Up to 30 m (98.43 ft) (Warm light)
- Illuminator Number: 1 (IR LED); 1 (Warm light)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Lens Type: Fixed-focal
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F1.6
- Field of View: 2.8 mm: H: 103°; V: 55°; D: 123°
- Field of View: 3.6 mm: H: 85°; V: 46°; D: 100°
- Intelligence
- Human Detection: Yes
- Vehicle Detection: Yes
- Audio and Video
- Video Compression: H.264B; H.264; H.264H; H.265; Video Frame Rate
- Main stream: 2304 × 1296@(1–25/30 fps)
- sub stream: 640 × 360@(1–25/30 fps)
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Video Bit Rate: H.264: 32 kbps–4096 kbps
- Video Bit Rate: H.265: 32 kbps–4096 kbps
- Day/Night: Auto(ICR)/Color/B/W
- WDR: DWDR
- Image Rotation: 0°/180°
- Built-in MIC: Yes, built-in Mic
- Audio Compression: G.711a; G.711Mu; PCM
- Network
- Network Port: RJ-45 (10/100 Base-T)
- Wi-Fi: IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
- Wi-Fi Pairing: Bluetooth pairing
- Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI
- Storage: Micro SD card (support max. 256 GB)
- Management Software: Smart PSS Lite; DSS; DMSS
- Mobile Client: iOS;Android
- General
- Certifications: CE-LVD: EN62368-1;
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
- CE-RED: Radio Equipment Directive 2014/53/EU
- Power Supply: 12 VDC
- Power Consumption: Basic: 1.9 W (12 VDC); Max.: 4.9 W (12 VDC) (H.265 + warm light on)
- Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity: ≤95% (RH), non-condensing
- Protection: IP67
- Camera Button: Reset button
- Casing Material: Metal + plastic
- Product Dimensions: 102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
- Net Weight: 0.32 kg (0.71 lb)
- Warranty: 1-years on part.
