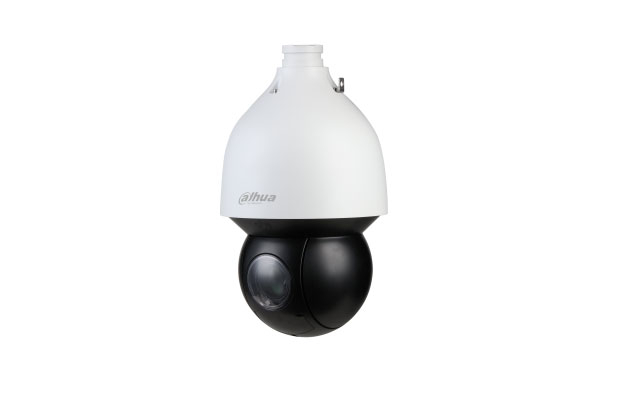

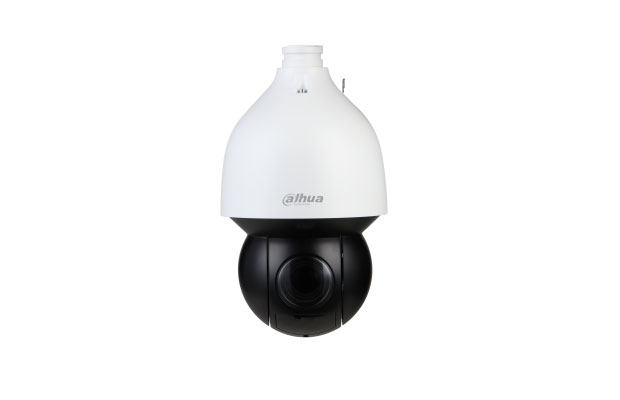

Dahua SD5A432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera
$535.00
- Part Number: SD5A432GB-HNR
- 1/2.8" 4Megapixel STARVIS™ CMOS.
- Powerful 32x optical zoom.
- Max. 25/30 fps@4M
- IR distance up to 150 m
- Auto Tracking 3.0
- Face Detection
- SMD 4.0
- PoE+
- IP67, IK10.
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: SD5A432GB-HNR
- Camera
- Image Sensor: 1/2.8" CMOS
- Pixel: 4 MP
- Max. Resolution: 2560 (H) × 1440 (V)
- ROM: 4 GB
- RAM: 1 GB
- Electronic Shutter Speed: 1/1 s–1/30,000 s
- Scanning System: Progressive
- Min. Illumination: Color: 0.005 [email protected]; B/W: 0.0005 [email protected]; 0 lux (IR light on)
- Illumination Distance: 150 m (492.13 ft) (IR)
- Illuminator On/Off Control: Zoom Prio; Manual; Smart IR
- Illuminator Number: 4 (IR)
- Lens
- Focal Length: 4.8 mm–154 mm
- Max. Aperture: F1.6–F4.0
- Field of View: H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°
- Optical Zoom: 32×
- Focus Control: Auto; semi-auto; manual
- Close Focus Distance: 0.8 m–5.0 m (2.62 ft–16.40 ft)
- Iris Control: Auto; manual
- DORI Distance:
- Detect: 2,124 m (6,968.50 ft)
- Observe: 839 m (2,752.63 ft)
- Recognize: 425 m (1,394.36 ft)
- Identify: 212 m (695.54 ft)
- PTZ
- Pan/Tilt Range: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°
- Manual Control Speed: Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
- Preset Speed: Pan: 400°/s; Tilt: 300°/s
- Preset: 300
- Tour: 8 (up to 32 presets per tour)
- Pattern: 5
- Scan: 5
- Power-off Memory: Yes
- Idle Motion: Preset; Pattern; Tour; Scan
- Video
- Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)
- Streaming Capability: 3 streams
- Resolution: 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Video Frame Rate: Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)Sub stream 1: D1/VGA/CIF (1–25/30 fps)Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
- Bit Rate Control: CBR; VBR
- Video Bit Rate: H264: 96 Kbps–14848 Kbps; H265: 38 Kbps–8960 Kbps
- Day/Night: Auto (ICR); Color; B/W
- BLC: Yes
- WDR: 120 dB
- White Balance: Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
- Gain Control: Auto; manual
- Noise Reduction: 2D NR; 3D NR
- Motion Detection: Yes
- Region of Interest (RoI): Yes
- Image Stabilization: Electronic (EIS)
- Defog: Electronic
- Digital Zoom: 16×
- Image Rotation: 180°
- Privacy Masking: Up to 24 areas can be set, with up to 8 areas in the same view
- S/N Ratio: ≥55 dB
- Audio
- Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
- Network
- Network Port: RJ-45 (10/100 Base-T)
- Network Protocol: HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP; TLSv1.2; SYSLOG(REMOTE LOGS); SSL
- Interoperability: ONVIF(Profile S&G&T);CGI;SDK
- Streaming Method: Unicast; Multicast
- User/Host: 20 (total bandwidth: 64 M)
- Storage: FTP; Micro SD card (512 GB); NAS
- Browser: IE 7 and later versions
- Chrome 42 and earlier versions
- Firefox 52 and earlier versions
- Safari
- Management Software: Smart PSS; DSS; DMSS; Easy4ip; IVSS
- Mobile Client: iOS; Android
- Certification
- Certifications: CE: EN55032/EN55024/EN50130-4
- FCC: Part15 subpartB, ANSI C63.4-2014
- UL: UL60950-1+CAN/CSA C22.2, No.60950-1
- Port
- Alarm I/O: 2/1
- Audio I/O: 1/1
- Two-way Audio: Yes
- Alarm Linkage: Capture; preset; tour; pattern; recording; triggering on-off value output; audio; send email
- Alarm Event: Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
- Power
- Power Supply: 24 VDC, 2.5 A ± 25%; PoE +(802.3at)
- Power Consumption: Basic: 13 W; Max: 22 W (illuminator + PTZ working + Heater + Fan)
- Environment
- Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
- Operating Humidity: ≤95%
- Protection: IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection
- Structure
- Product Dimensions: 332 mm × Φ190 mm (13.07" × Φ7.48")
- Net Weight: 4.7 kg (10.36 lb)
- Gross Weight: 8 kg (17.64 lb).
