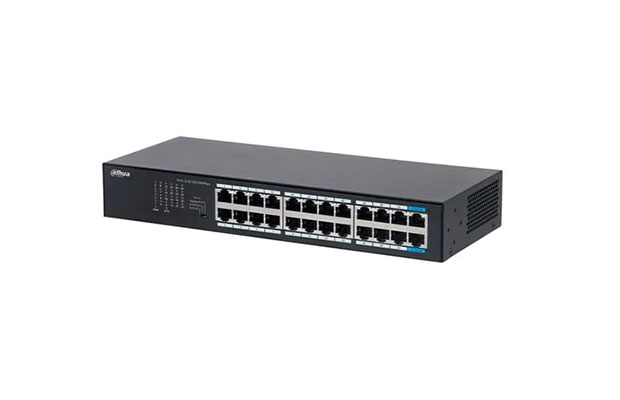

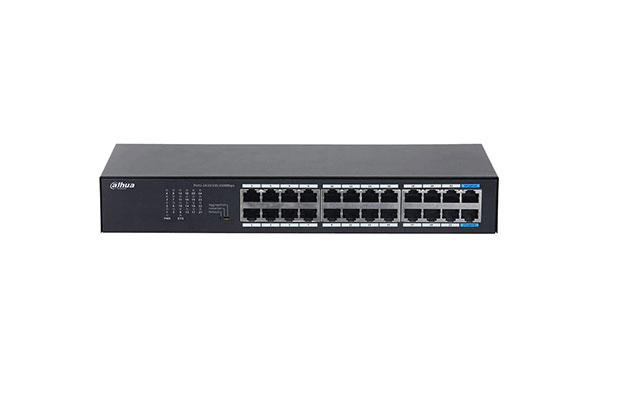

Dahua DH-S3024-24GT 24-Port Unmanaged Gigabit Switch

$55.00

Part Number: DH-S3024-24GT
24 × RJ-45 10/100/1000 ports.
The all-gigabit ports transmit data without lag.
Features aggregation mode which aggregates uplink ports.
Features isolation mode which isolates all the ports from each other.
With its solid full metal design, the device has great heat dissipation and no fan.
Supports rack mount, wall mount and desktop mount.
Warranty: 1-years on part.

Contact for Price & Stock

Delivery 25 Provinces

Official Warranty

100% Genuine Product

Tech Support

Specifications

Part Number: DH-S3024-24GT
Basic
Layer: Layer 2
Switching Capacity: 48 Gbps
Packet Forwarding Rate: 35.712 Mpps
Description of Function Slots:
- Port 1-22: 22 × RJ-45 10/100/1000 Mbps;
- Port 23-24: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 5%–95% (RH), non-condensing
Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity: 5%–95% (RH), non-condensing
Power Supply: Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A
Power Consumption: Idling: 2.7 W; Full load: 12.3 W
Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection: Common mode: 2 kV; Differential mode: 0.5 kV
Net Weight: 0.83 kg (1.82 lb)
Gross Weight: 1.34 kg (2.95 lb)
Product Dimensions: 294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)
Packaging Dimensions: 353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)
Casing Material: Sheet Metal
Installation: Desktop mount; wall mount; rack mount
Certifications: CE
Hardware
DIP Switch: Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-22, but allows ports 1-22 to send its traffic to the uplink ports 23-24. These uplink ports can also send their traffic to 1-22.
Port aggregation: Aggregates uplink ports.
Performance
Packet Buffer Size: 8.4 Mbit
Jumbo Frame: 12K Byte
MAC Table Size: 16K
Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad
Feature
Link Aggregation: Static link aggregation
Port Feature: IEEE 802.3x traffic control
IEEE 802.3x Flow Control: Yes
General
Packing List:
- 1 × User Manual;
- 1 × Legal and Regulatory Information;
- 1 × Power Cord;
- 1 × Rack-mounting Kit;
Warranty: 1 Year on part.
