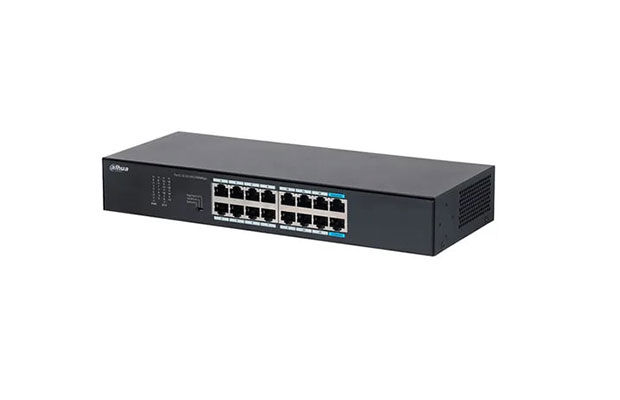

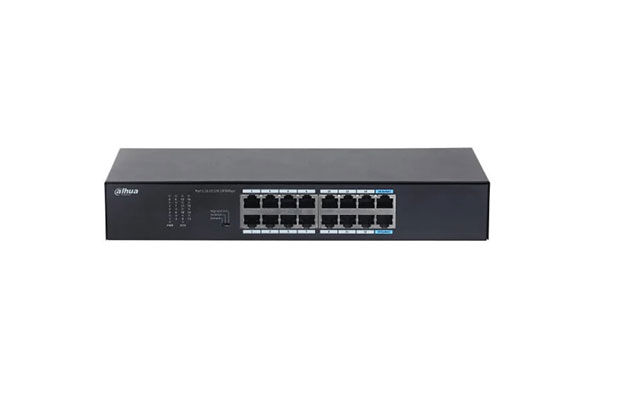

Dahua DH-S3016-16GT 16-Port Unmanaged Gigabit Switch
$49.00
- Part Number: DH-S3016-16GT
- 16 × RJ-45 10/100/1000 ports.
- The all-gigabit ports transmit data without lag.
- Features aggregation mode which aggregates uplink ports.
- Features isolation mode which isolates all the ports from each other.
- With its solid full metal design, the device has great heat dissipation and no fan.
- Supports rack mount, wall mount and desktop mount.
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-S3016-16GT
- Basic
- Layer: Layer 2
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.808 Mpps
- Description of Function Slots:
- - Port 1-14: 14 × RJ-45 10/100/1000 Mbps;
- - Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
- Storage Humidity: 5%–95% (RH), non-condensing
- Power Supply: Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A
- Power Consumption: Idling: 2.2 W; Full load: 7.8 W
- Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
- Lightning Protection: Common mode: 2 kV; Differential mode: 0.5 kV
- Net Weight: 0.74 kg (1.63 lb)
- Gross Weight: 1.297 kg (2.86 lb)
- Product Dimensions: 294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)
- Packaging Dimensions: 353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)
- Casing Material: Sheet Metal
- Installation: Desktop mount; wall mount; rack mount
- Certifications: CE
- Hardware
- DIP Switch:
- Default: Default setting
- Post isolation: Prevents traffic from being sent between ports 1-14, but allows ports 1-14 to send its traffic to the uplink ports 15-16. These uplink ports can also send their traffic to 1-14.
- Port aggregation: Aggregates uplink ports.
- Performance
- Packet Buffer Size: 8.4 Mbit
- Jumbo Frame: 12K Byte
- MAC Table Size: 16K
- Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad
- Feature
- Link Aggregation: Static link aggregation
- Port Feature: IEEE 802.3x traffic control
- IEEE 802.3x Flow Control: Yes
- General
- Packing List:
- 1 × User Manual;
- 1 × Legal and Regulatory Information;
- 1 × Power Cord;
- 1 × Rack-mounting Kit
- Warranty: 1 Year on part
