Dahua DH-S3010-8ET2ET-60 10-Port Unmanaged Desktop Switch with 8-Port PoE
$39.00
- Part Number: DH-PFS3110-8GT-65
- Unmanaged gigabit PoE switch.
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards.
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
- Easy to install, and plug and play.
- Meets the IEEE 802.3af and IEEE802.3at power supply standards.
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-S3010-8ET2ET-60
- Basic
- Layer: Unmanaged
- Switching Capacity: 2 Gbps
- Packet Forwarding Rate: 1.488 Mpps
- Description of Function Slots:

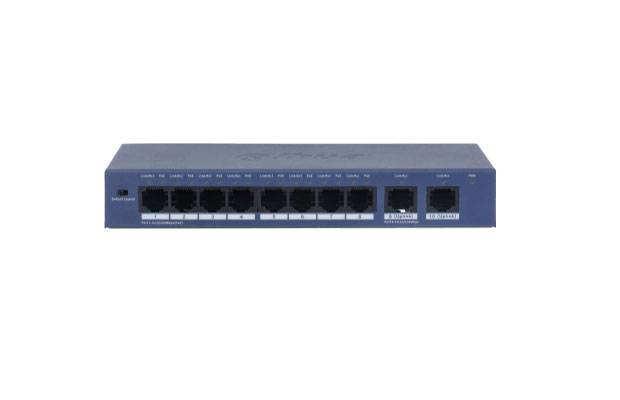

- - Port 1-8: 8 × RJ45 10/100 Mbps (PoE)
- - Port 9-10: 2 × RJ45 10/100 Mbps (Uplink)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)
- Storage Humidity: 5%–95% (RH), non-condensing
- Power Supply: External power supply: 53 V, 50/60 Hz, max 1.22 A
- Power Consumption: Idling: 1.9 W & Full load: 63.6 W
- Statics Protection: Air discharge: 8 kV
- Statics Protection: Contact discharge: 6 kV
- Lightning Protection: Common mode: 6 kV
- Lightning Protection: Differential mode: 1 kV
- Net Weight: 0.28 kg (0.62 lb)
- Gross Weight: 0.861 kg (1.90 lb)
- Product Dimensions: 184.6 mm × 77.4 mm × 27 mm (7.27" × 3.32" × 1.06") (L × W × H)
- Packaging Dimensions: 253 mm × 112 mm × 83 mm (9.96" × 4.41" × 3.27") (L × W × H)
- Casing Material: Sheet Metal
- Installation: Desktop mount; wall mount
- Certifications: CE
- PoE
- PoE: Yes
- PoE Power: Port 1-8≤30 W, total≤60 W
- PoE Protocol: IEEE 802.3af; IEEE 802.3at
- PoE Pin Assignment: 1,2,4,5 (V+),3,6,7,8 (V-)
- Long Distance PoE Transmission: Yes
- Hardware
- DIP Switch: Long Distance PoE: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
- Performance
- Packet Buffer Size: 768 Kbit
- Jumbo Frame: 2048 Byte
- MAC Table Size: 2K
- Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x
- General
- Packing List:
- - 1 × User Manual
- - 1 × Legal and Regulatory Information
- - 1 × Power Cord
- - 1 × Power Adapter
- Warranty: 1-years on part.
