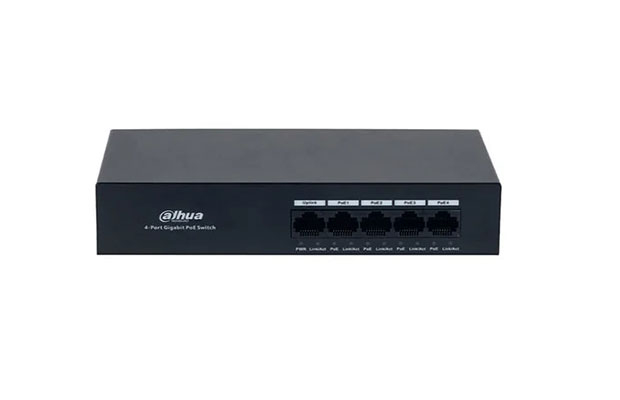

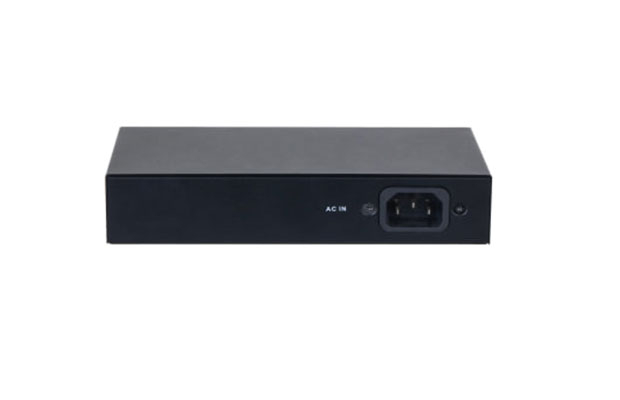

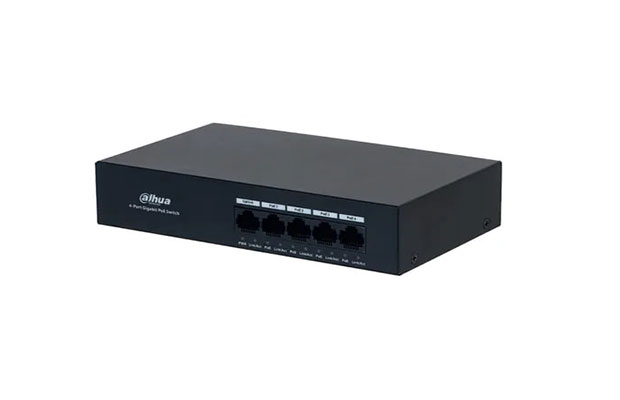

Dahua DH-PFS3005-4GT-36 5-Port Economical Gigabit Switch with 4-Port PoE
$42.00
- Part Number: DH-PFS3005-4GT-36
- 5-Port Economical Gigabit Switch with 4-Port PoE
- Unmanaged gigabit PoE switch.
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards.
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
- Easy to install, and plug and play.
- Meets the IEEE 802.3af and IEEE802.3at power supply standards
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-PFS3005-4GT-36
- Hardware
- Power Adapter Included: Yes
- PoE: Yes
- Ethernet Port: 4
- Optical Port: 0
- Ethernet Port Speed: 10/100/1000 Mbps
- Ethernet Port Uplink Speed: 10/100/1000 Mbps
- Description of Function Slots:
- - Port 1–4: 4 × RJ–45 10/100/1000 Mbps;
- - Port 5: 1 × RJ–45 10/100/1000 Mbps
- Power Supply: Built-in power supply: 100–240 VAC; 50/60Hz; 0.67 A (maximum)
- Operating Temperature: –10°C to +55°C (+14°F to +131°F)
- Operating Humidity: 5%–95% (RH), non-condensing
- Power Consumption: Idling: 1.8 W; Full load: 36 W
- Performance
- Layer: Layer 2
- Management Type: No
- Smart Managed Switch: No
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- Packet Buffer Size: 1 Mbit
- Jumbo Frame: 9,216 Bytes
- MAC Table Size: 2K Bytes
- Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
- Feature
- PoE Protocol: IEEE 802.3af; IEEE 802.3at
- PoE Power: Port 1–4 ≤30W; Total ≤36W
- PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
- ePoE: No
- Long Distance PoE Transmission: No
- General
- Static Protection: Air discharge: 8 kV; Contact discharge: 6 kV
- Lighting Protection: Common mode: 2 kV; Differential mode: 0.5 kV
- Net Weight: 0.464 kg (1.02 lb)
- Gross Weight: 0.964 kg (2.13 lb)
- Product Dimensions: 170mm × 100mm × 35mm (6.69" × 3.94" × 1.38") (L × W × H)
- Packaging Dimensions: 265mm × 238mm × 76mm (10.43" × 9.37" × 2.99") (L × W × H)
- Casing Material: Iron
- Installation: Desktop mount
- Certifications: CE; FCC
- Warranty: 1 Year on part.
