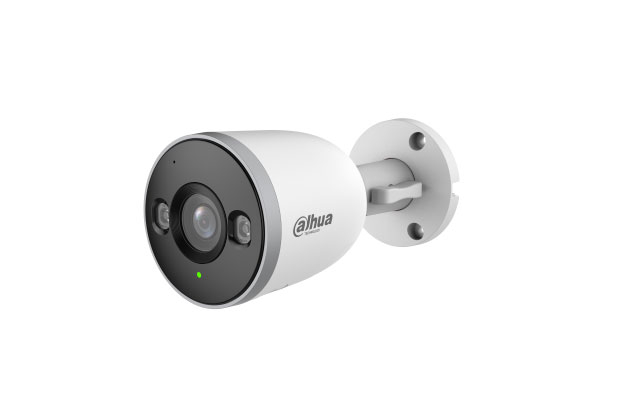

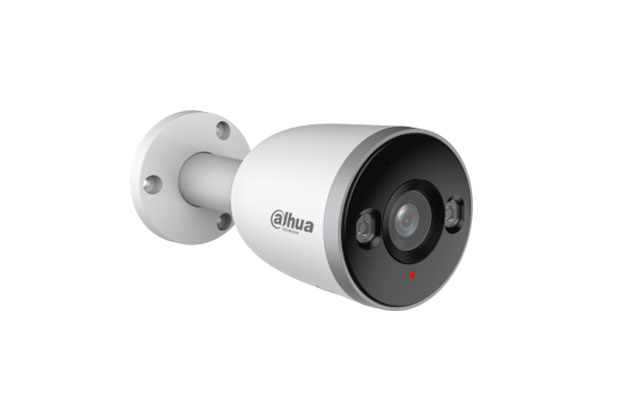

Dahua DH-F5D-IL 5MP Fixed-focal Wi-Fi Bullet Network Camera
$45.00
- Part Number: DH-F5D-IL
- Wi-Fi 6 Delivers High Speed with Strong Anti-Interference Performance
- Fast Pairing with Bluetooth
- IP67 Protection
- AI Human & Vehicle Detection
- Hear What’s Happening with A Built-in Mic
- See in Color Only When It Counts —Smart Dual Light Gives Discreet Monitoring That Brightens on Motion.
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-F5D-IL
- Camera
- Image Sensor: 1/2.7" CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Illumination Distance:
- - Up to 30 m (98.43 ft) (IR)
- - Up to 30 m (98.43 ft) (Warm light)
- Illuminator Number: 1 (IR LED); 1 (Warm light)
- Angle Adjustment: Tilt: 0°–90° & Rotation: 0°–360°
- Lens Type: Fixed-focal
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F1.6
- Field of View: 2.8 mm: H: 104°; V: 56°; D: 124°
- Field of View: 3.6 mm: H: 89°; V: 48°; D: 104°
- Intelligence
- Human Detection: Yes
- Vehicle Detection: Yes
- Audio and Video
- Video Compression: H.264B; H.264; H.264H; H.265
- Video Frame Rate: Main stream: 2880 × 1620@(1-25/30 fps)
- Video Frame Rate: sub stream: 640 × 360@(1-25/30 fps)
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Video Bit Rate: H.264: 32 kbps–4096 kbps; H.265: 32 kbps–4096 kbps
- Day/Night: Auto(ICR)/Color/B/W
- WDR: DWDR
- Motion Detection: OFF/ON (4 areas, rectangular)
- Image Rotation: 0°/180°
- Built-in MIC: Yes, built-in Mic
- Built-in Speaker: No
- Audio Compression: G.711a; G.711Mu; PCM
- Network
- Network Port: RJ-45 (10/100 Base-T)
- Wi-Fi: IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
- Wi-Fi Pairing: Bluetooth pairing
- Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI
- Storage: Micro SD card (support max. 256 GB)
- Management Software: Smart PSS Lite; DSS; DMSS
- Mobile Client: Android;iOS
- General
- Certifications: CE-LVD: EN62368-1;
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
- CE-RED: Radio Equipment Directive 2014/53/EU
- Power Supply: 12 VDC
- Power Consumption: Basic: 1.98 W (12 VDC); Max.: 4.02 W (12 VDC) (H.265 + warm light intensity)
- Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity: ≤95% (RH), non-condensing
- Protection: IP67
- Camera Button: Reset button
- Casing Material: Metal + plastic
- Product Dimensions: 158.3 mm × Φ76.8 mm (6.23" × Φ3.02")
- Net Weight: 331 g (0.73 lb)
- Warranty: 1-years on part.
