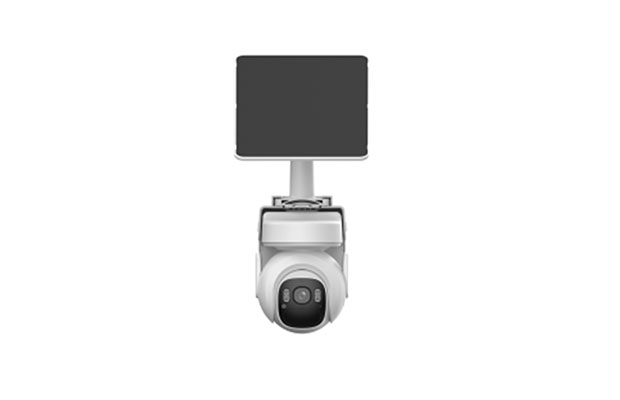

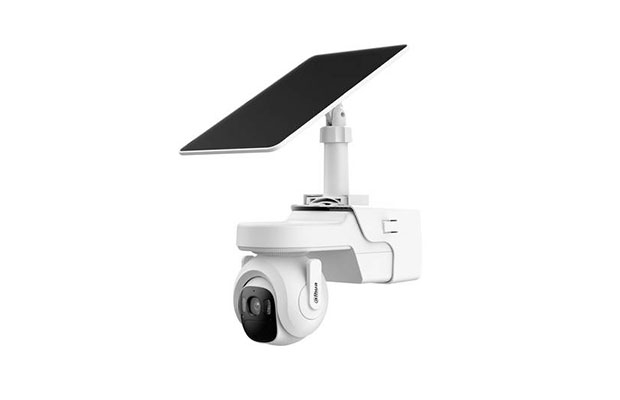

Dahua DH-BP4A-4G/M0508 4MP 4G Pan & Tilt Network Camera Solar Monitoring System
$105.00
- Part Number: DH-BP4A-4G/M0508
- 4MP 4G Pan & Tilt Network Camera
- Solar Monitoring System
- Image Sensor: 1/3″ CMOS
- Max. Resolution: 2560 (H) × 1440 (V)
- Illumination Distance: Up to 30 m (98.43 ft) (IR)
- Illumination Distance: Up to 20 m (65.62 ft) (Warm light)
- Illuminator Number: 1 (Warm light); 1 (IR light)
- Angle Adjustment: Pan: 0° to 360°
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-BP4A-4G/M0508
- Camera
- Image Sensor: 1/3″ CMOS
- Max. Resolution: 2560 (H) × 1440 (V)
- Illumination Distance: Up to 30 m (98.43 ft) (IR)
- Illumination Distance: Up to 20 m (65.62 ft) (Warm light)
- Illuminator Number: 1 (Warm light); 1 (IR light); 1 pairs (Red and blue alarm light)
- Angle Adjustment: Pan: 0° to 360°
- - Tilt: -60 °to 0°
- - Rotation: 0° to 360°
- PIR Sensor Distance: 12 m (the height of device is 2.5 m, placed horizontally);
- 8 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)
- Lens Type: Fixed-focal
- Focal Length: 3.6 mm
- Max. Aperture: F1.6
- Field of View: H: 78.4°; V: 42.4°; D: 92.4°
- Audio and Video
- Video Compression: H.265
- Video Frame Rate: Main stream: 2560 × 1440@(1–15 fps)
- sub stream: 640 × 360@(1–15 fps)
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Video Bit Rate: H.265: 32 kbps–4096 kbps
- Day/Night: Auto(ICR)/Color/B/W
- WDR: Yes
- Motion Detection: OFF/ON (4 areas, rectangular)
- Built-in MIC: Yes, built-in Mic
- Built-in Speaker: Yes, built-in speaker
- Audio Compression: G.711a
- Network
- Network Port: RJ-45 (10/100 Base-T)
- Carrier Network System:
- - (-EAU): FDD-LTE: B1/B3/B5/B7/B8/B20/B28;
- - Applicable regions: Europe, Middle East, Africa
- - Power class 3: 23dBm ±2.7dB
- - (-LA): FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66;
- - Applicable regions: Latin America
- - Power class 3: 23dBm ±2.7dB
- Management Software: DMSS; DSS Pro
- Mobile Client: iOS; Android
- General
- Certifications: CE-LVD: EN62368-1;
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
- - CE-RED: Radio Equipment Directive 2014/53/EU
- Power Supply:
- - Built in 68Wh lithium battery
- - Comes with 8 W solar panel
- - Charging:
- - USB Type-C
- Power Consumption:
- - Ultra power saving mode: 0.04 W
- - Power saving mode: 0.041 W
- - AOV mode: 0.197 W
- - Performance mode: 1.2 W
- Operating Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: ≤95% (RH), non-condensing
- Protection: IP66
- Casing Material: Plastic
- Product Dimensions: 284 mm × 172 mm × 360 mm (11.57″ × 6.77″ × 14.17″) (L × W × H)
- Net Weight: 1055 g (2.33 lb)
- Battery
- Battery Capacity: 68 Wh
- Warranty: 1 Year on part.
