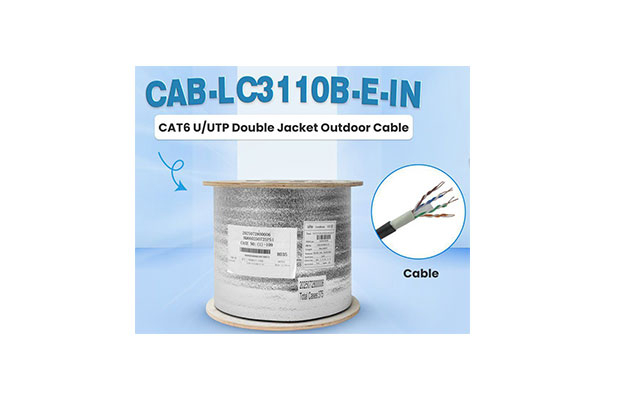

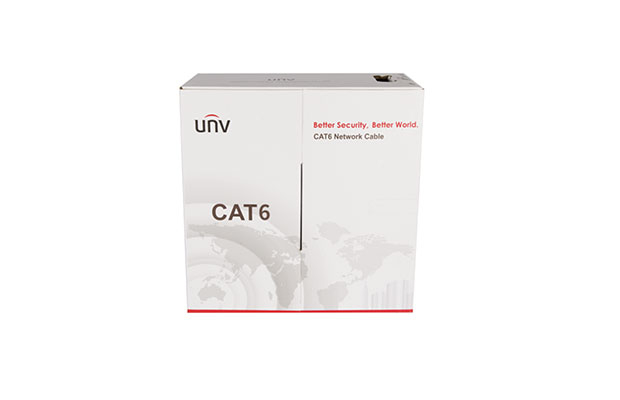

Uniview CAB-LC3110B-E-IN Cat6 Outdoor UTP Network Cable Black-Color 305M
$109.00
- Part Number: CAB-LC3100B-E-IN
- Test Standard: ISO/IEC11801、TIA-568-C.2
- Product specification: HSYV-6 4×2×0.52
- Packing length: 305±1m
- Ambient temperature: -20℃～60℃
- AWG: 24
- Color: Black
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: CAB-LC3100B-E-IN
- Cable
- Test Standard: ISO/IEC11801、TIA-568-C.2
- Product specification: HSYV-6 4×2×0.52
- Packing length: 305±1m
- Ambient temperature: -20℃～60℃
- Rip-cord: Yes
- Crossing backbone: Yes
- Conductor
- AWG: 24
- Nom.O.D.(mm): 0.52±0.03 mm
- DC resistance: ≤95 Ω/km
- Material: OFC(Oxygen free copper)
- Insulation
- Diameter: 0.93±0.05 mm
- Material: HDPE
- Thickness: 0.2±0.02 mm
- Color: Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
- Pitch
- Offset pitch: ≤20 mm
- Cable pitch: ≤120 mm
- Sheath
- Material: PVC(complies RoHS/REACH)
- Thickness: 0.6±0.05 mm
- External O.D.: 5.8±0.3 mm
- Tensile strength: >13.5 Mpa
- Surface Printing
- Color: Black
- Letter height: 3.0±0.3 mm
- Print error / Space: 1±0.005 m
- Case number: Yes
- Packing
- Packing : Carton
- Once packing dimension: 420mm*205mm*420mm
- Twice packing dimension: 450mm*440mm*445mm
- Twice packing quantity: 2 cases
