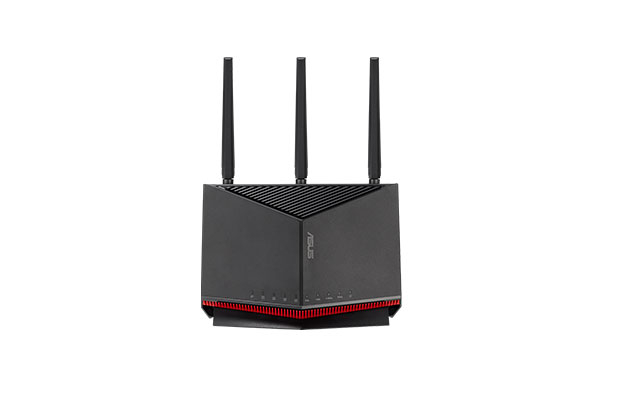

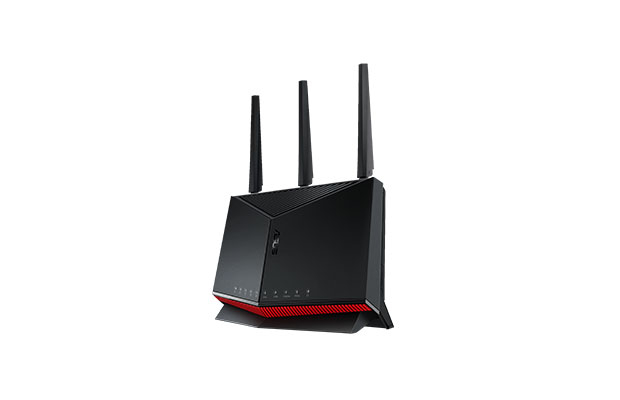

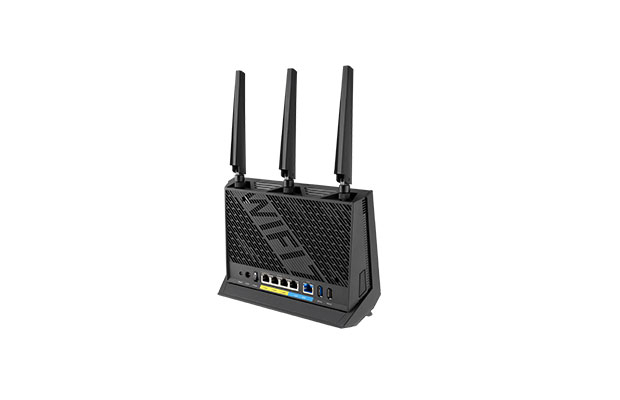

Asus RT-BE86U BE6800 Dual-Band WiFi 7 Router
$329.00
- Part Number: RT-BE86U
- ASUS RT-BE86U BE6800 Dual-Band WiFi 7 Router, Supports 4096-QAM, MLO, AI WAN Detection, AiMesh, Subscription-Free Network Security, and Comprehensive VPN Features, Guest Network Pro, Gaming.
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: RT-BE86U
- Network Standard
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- WiFi 7 (802.11be)
- IPv4
- IPv6
- Product Segment: BE6800 ultimate BE performance : 1032+5764 Mbps
- WiFi Data Rate
- WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
- WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
- Antenna
- External antenna x 3； Internal antenna x 1
- Transmit / Receive: 2.4GHz 3x3 & 5GHz 4x4
- Processor: 2.6GHz quad-core processor
- Memory: 256 MB Flash and 1 GB RAM
- Boosts Speed
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 4096-QAM high data rate
- 20/40/80/160 MHz bandwidth
- Operating Frequency: 2.4 GHz & 5 GHz
- Operating Mode
- -Wireless Router Mode
- -AiMesh Node Mode
- -Access Point Mode
- -Media Bridge Mode
- -Repeater Mode
- I/O Ports: 1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1
- Buttons: WPS Button, Reset Button, Power Switch, LED on/off Button
- LED Indicator
- WAN x1
- 10G Port x1
- LAN x4
- USB x1
- 2.4GHz x1
- 5GHz x1
- Power x1
- Power Supply: AC Input : 110V~240V(50~60Hz)
- DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current
- Package Content
- RT-BE86U WiFi router
- RJ-45 cable
- Power adapter
- Quick Start Guide
- Warranty card
- Product Weight (g): 854 g
- Product Dimensions: 235*90*316 mm
- AiMesh
- AiMesh: Primary AiMesh Router
- AiMesh: AiMesh Node
- Game
- Mobile Game Mode
- Gear Accelerator
- OpenNAT (Game Profile)
- Gaming Port
- Parental Control
- "Allow you to block access to unwanted websites and apps."
- Web & Apps Filters
- Time Scheduling
- Safe Browsing
- Customized Internet Schedule
- Maximum Parental Control Profile : 64
- Maximum Parental Control Content Filter Rule : 64
- Guest Network
- "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
- Support Guest Network Pro
- Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
- Guest Network Connection Time Limit
- Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
- Security
- AiProtection
- VPN
- WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
- WPS
- Let's Encrypt
- DNS-over-TLS
- SSH
- Security Scan
- Firewall
- Maximum Firewall Keyword Filter : 64
- Maximum Firewall Network Service Filter : 32
- Maximum Firewall URL Filter : 64
- AiProtection
- AiProtection Pro
- - Router Security Assessment
- - Malicious Site Blocking
- - Two-Way IPS
- - Infected Device Prevention and Blocking
- VPN
- Instant Guard
- VPN Client L2TP
- VPN Client Open VPN
- VPN Client PPTP
- VPN Client WireGuard
- VPN Server IPSec
- VPN Server Open VPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
- Support Surfshark
- Traffic Control
- Adaptive QoS
- - Bandwidth Monitor
- - Bandwidth Limiter
- -- Maximum Bandwidth Limiter Rule : 32
- Traditional QoS
- Traffic Monitor
- - Real-time Traffic Monitor
- - Wired Traffic Monitor
- - Wireless Traffic Monitor
- Traffic Analyzer
- - Traffic Analysis Period : Daily, Weekly, Monthly
- - Website History
- WAN
- Internet Connection Type :
- - PPPoE
- - PPTP
- - L2TP
- - Automatic IP
- - Static IP
- - IPSec
- Dual WAN
- WAN Aggregation
- 3G / 4G LTE dongle
- Port forwarding
- - Maximum Port Forwarding Rule : 64
- -Port triggering
- - Maximum Port Triggering Rule : 32
- DMZ
- DDNS
- NAT Passthrough :
- - PPTP Pass-Through
- - L2TP Pass-Through
- - IPSec Pass-Through
- - RTSP Pass-Through
- - H.323 Pass-Through
- - SIP Pass-Through
- - PPPoE Relay
- LAN
- DHCP Server
- IGMP Snooping
- IPTV
- LAN Link Aggregation
- Manually Assign IP Address
- Maximum Manually Assign IP Address Rule : 128
- Wake on LAN (WOL)
- Wireless
- MU-MIMO
- UTF-8 SSID
- WiFi MAC Address Filter
- Maximum MAC Filters : 64
- Wireless Scheduler
- Airtime Fairness
- RADIUS Client
- Universal Beamforming
- Explicit Beamforming
- USB application
- File System :
- - HFS+
- - NTFS
- - vFAT
- - ext2
- - ext3
- - ext4
- Safely Remove Disk
- AiCloud
- Download Master
- AiDisk
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder Privileges
- User Interface
- WEB: ASUSWRT
- APP: ASUS Router APP
- Administration
- Configuration Backup and Restore
- Diagnosis tools
- Feedback System
- System Log
- New Device Connect Notification
- Login Captcha
- Connection Diagnosis
- Auto Firmware Update
- Warranty: 2 years on part.
