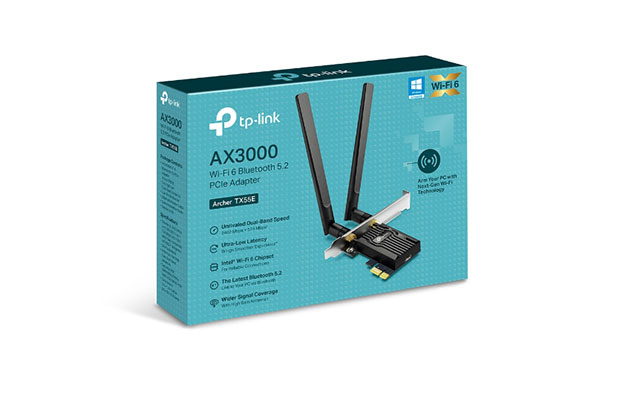

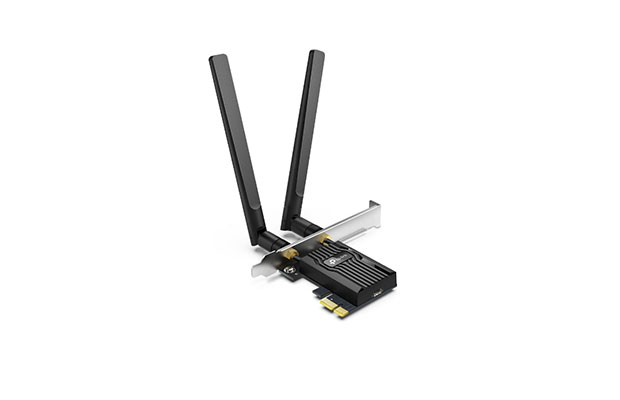

TP-Link Archer TX55E AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
$29.00
- Part Number: Archer TX55E
- Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
- Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
- Warranty: 3 Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: Archer TX55E
- HARDWARE FEATURES
- Dimensions ( W x D x H ): 4.72 x 3.09 x 0.82 (inches) 120 x 78.5 x 21 (mm)
- Antenna: Two High-Gain Dual Band Antennas
- Chipset: Intel Wi-Fi 6 Chipset
- Bluetooth Features
- Standards and Protocols: Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
- Interface: F_USB 2.0
- WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz & IEEE 802.11ax/n/g/b 2.4 GHz
- Bluetooth: 5.2/5.0/4.2/4.0
- WLAN Signal Rate 5 GHz
- 11ax: Up to 2402 Mbps(dynamic)
- 11ac: Up to 1733 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
- WLAN Signal Rate 2.4 GHz
- 11ax: Up to 574 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
- WLAN Reception Sensitivity 5 GHz :
- 11ax HT160：-56.25dBm
- 11ax HT80: -59dBm
- 11ax HT40: -62.25dBm
- 11ax HT20: -65dBm
- 11ac HT160：-62dBm
- 11ac HT80: -65.5dBm
- 11ac HT40: -69.75dBm
- 11ac HT20: -73.75dBm
- 11n HT40: -74.5dBm
- 11n HT20: -77.5dBm
- 11a 54Mbps: -77.75dBm
- 11a 6Mbps: -94.5dBm
- WLAN Reception Sensitivity 2.4GHz :
- 11ax HT40: -60.75dBm
- 11ax HT20: -63.75dBm
- 11n HT40: -73dBm
- 11n HT20: -76.25dBm
- 11g 54Mbps: -76.5dBm
- 11b 11Mbps: -89dBm
- WLAN Transmit Power: 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) & 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
- WLAN Modes: Infrastructure mode
- Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
- OTHERS
- Certification: CE, FCC, RoHS
- Package Content Archer TX55E
- Two High-Gain Antennas
- Low-Profile Bracket
- Standard Bluetooth Header Cable
- Quick Installation Guide
- Resource CD
- System Requirements: Supports Windows 11/10 (64-bit) only
- Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Warranty: 3 Years on part.
