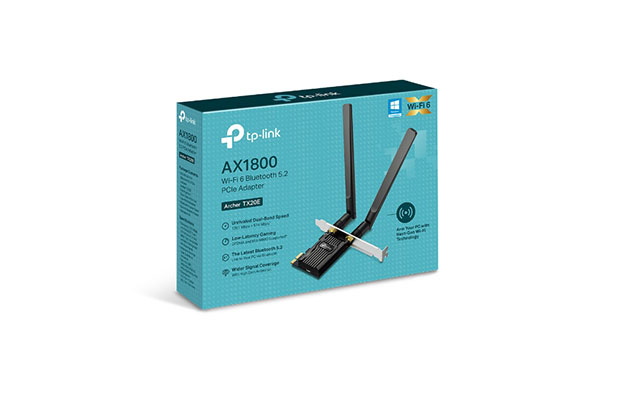

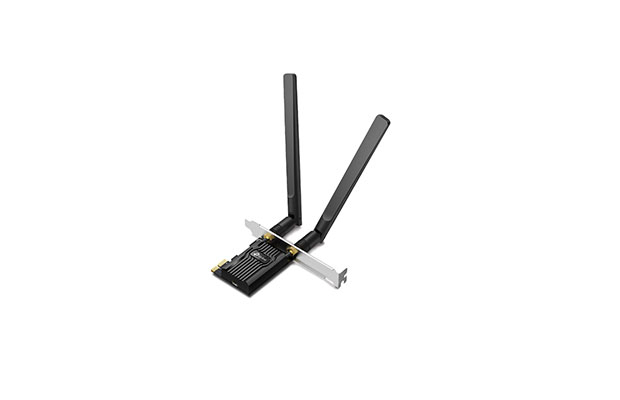

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
$25.00
- Part Number: Archer TX20E
- Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†‡
- Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2**
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards
- Warranty: 3-Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: Archer TX20E
- HARDWARE FEATURES
- Dimensions ( W x D x H ): 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm)
- Antenna: Two High-Gain Dual Band Antennas
- Chipset: Realtek Wi-Fi 6 Chipset
- WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz
- Wireless Standards: IEEE 802.11ax/n/g/b 2.4 GHz
- Bluetooth 5.2
- WLAN Signal Rate
- 5 GHz
- 11ax: Up to 1201 Mbps(dynamic)
- 11ac: Up to 867 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
- 2.4 GHz
- 11ax: Up to 574 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
- WLAN Reception Sensitivity
- 5 GHz :
- 11ax HE80: -57.0dBm
- 11ax HE40: -60.0dBm
- 11ax HE20: -63.0dBm
- 11ac VHT80: -59.5dBm
- 11ac VHT40: -62.5dBm
- 11ac VHT20: -67.5dBm
- 11n HT40: -69.5dBm
- 11n HT20: -72.5dBm
- 11a 54Mbps: -74.0dBm
- 11a 6Mbps: -94.5dBm
- 2.4GHz :
- 11ax HE40: -60.0dBm
- 11ax HE20: -63.0dBm
- 11n HT40: -69.5dBm
- 11n HT20: -72.5dBm
- 11g 54Mbps: -74.0dBm
- 11b 11Mbps: -88.0dBm
- WLAN Transmit Power: 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
- WLAN Transmit Power: 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
- WLAN Modes: Infrastructure mode
- Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
- OTHERS
- Certification: CE, FCC, RoHS
- Package Content:
- Archer TX20E
- Two High-Gain Dual Band Antennas
- Low-Profile Bracket
- Bluetooth Header Cable
- Quick Installation Guide
- Resource CD
- System Requirements: Windows 11/10(64-bit) only
- Environment:
- -Operating Temperature: 0℃~40℃ (32℉~104℉)
- -Storage Temperature: -40℃~70℃ (-40℉~158℉)
- -Operating Humidity: 10%~90% non-condensing
- -Storage Humidity: 5%~90% non-condensing
