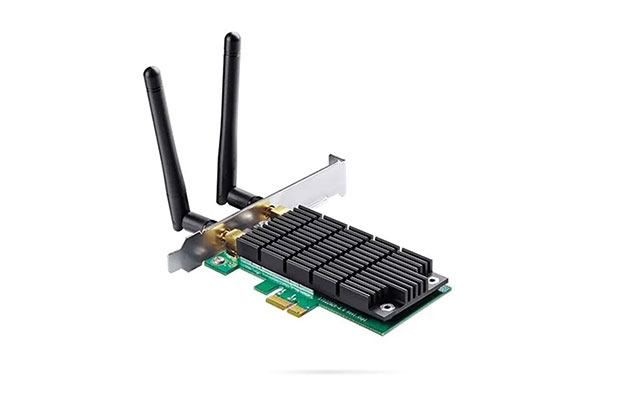

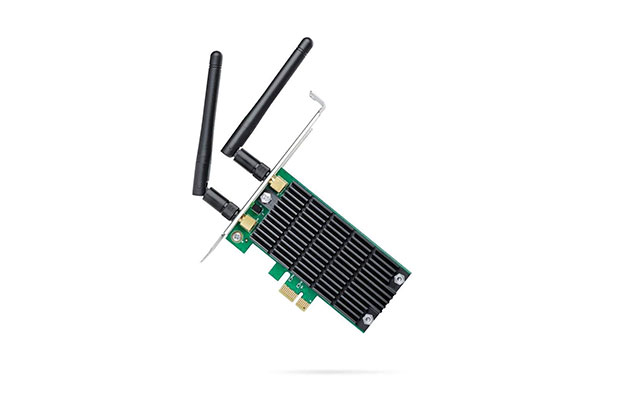

TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter
$25.00
- Part Number: Archer T4E
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
- High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)*
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
- Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
- Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
- 2×2 MIMO – Users can easily access to high-speed wireless connection
- Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
- Warranty: 3 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: Archer T4E
- HARDWARE FEATURES
- Interface: PCI Express
- Dimensions ( W x D x H ): 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
- Antenna: 2 Dual Band Detachable Antennas
- WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ac/n/a 5 GHz & IEEE 802.11n/g/b 2.4 GHz
- Signal Rate: 5 GHz
- 11ac: Up to 867 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
- Signal Rate: 2.4 GHz
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
- Reception Sensitivity 5 GHz :
- 11ac HT80: -59.5 dBm
- 11ac HT40: -63 dBm
- 11ac HT20: -68 dBm
- 11n HT40: -70 dBm
- 11n HT20: -73 dBm
- 11a 54Mbps: -76 dBm
- 11a 6Mbps: -92 dBm
- Reception Sensitivity 2.4GHz :
- 11n HT40: -67.5 dBm
- 11n HT20: -70 dBm
- 11g 54Mbps: -72 dBm
- 11b 11Mbps: -86.5 dBm
- Wireless Modes: Infrastructure mode
- Wireless Security: Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
- Transmission Power: 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) & 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
- OTHERS
- Certification: FCC, RoHS
- Package Content AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
- Low-Profile Bracket
- Quick Installation Guide
- Resource CD
- System Requirements: Windows 11/10/8.1/8/7/XP (32/64bit)
- Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Warranty: 3 Year on part.
