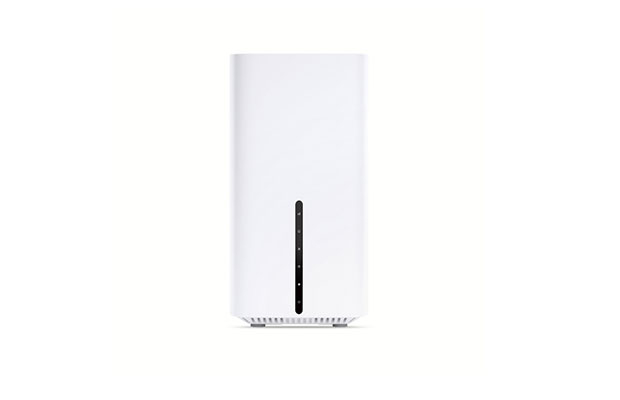

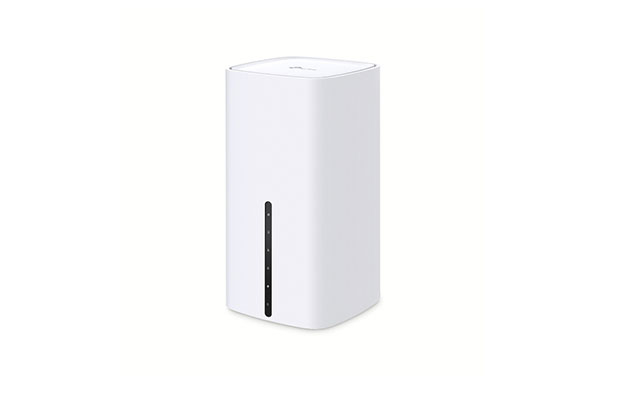

TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router
$289.00
- Part Number: Archer NX200
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
- AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Plug & Play - Enjoy 5G network right after inserting a SIM card.
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
- Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
- Warranty: 3year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: Archer NX200
- HARDWARE FEATURES

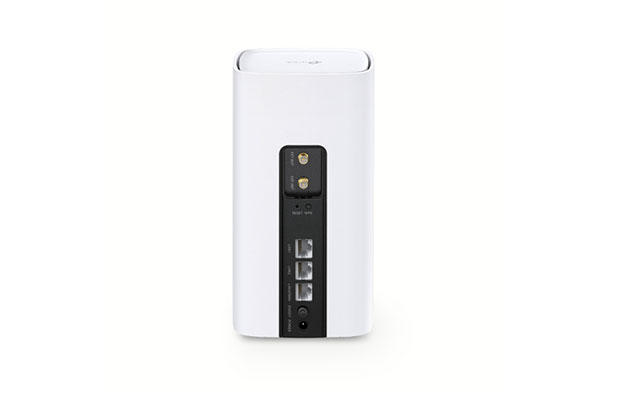

- Interface:
- 1 × 10/100/1000 Mbps LAN/WAN Port
- 2 × 10/100/1000 Mbps LAN Ports
- 1 × Nano SIM Card Slot
- 2 × External SMA-F Antenna Interface
- Button: WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
- External Power Supply: Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
- Output parameter: 12VDC 2A
- Dimensions ( W x D x H ): 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
- Antenna: 8 × 5G/LTE Internal Antennas, 2 × Wi-Fi Internal Antennas
- WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
- Reception Sensitivity 5GHz：
- 11a 54M：-80 dBm
- 11ax HE20：-68 dBm
- 11ax HE40：-65 dBm
- 11ax HE80：-62 dBm
- 11ac VHT20：-76 dBm
- 11ac VHT40：-72 dBm
- 11ac VHT80：-68 dBm
- 11n HT20：-79 dBm
- 11n HT40：-75 dBm
- 2.4GHz
- 11g 54M：-78 dBm
- 11ax HE20：-65 dBm
- 11ax HE40：-62 dBm
- 11ac VHT20：-73 dBm
- 11ac VHT40：-68 dBm
- 11n HT20：-75 dBm
- 11n HT40：-72 dBm
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
- Statistics
- WAN Failover: Yes
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Transmission Power: <23dBm (5.15GHz~5.35GHz)
- <30dBm (5.47GHz~5.71GHz)
- <20dBm (2.4GHz)
- Network Type 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
- TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
- DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
- SOFTWARE FEATURES
- Quality of Service: Prioritizes network traffic by device or application
- Security: DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management Features: TP-Link Cloud, Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: TP-Link, DynDns, NO-IP
- VPN: PPTP VPN, IPSec VPN , OpenVPN
- Access Control: Parental Control, Local Management Control
- Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
- Protocols: IPv4, IPv6
- Guest Network: 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
- OTHER
- Network Services Enabled by Default: Web Server
- Manage and configure device through web (HTTP/HTTPS)
- - Port: 80/443 Protocol: TCP
- DHCP Server
- IP address assignment (DHCP)
- - Port: 67 Protocol: UDP
- IPv6 DHCP Server
- IP address assignment (DHCPv6)
- - Port: 547 Protocol: UDP
- DNS
- DNS
- - Port: 53 Protocol: TCP
- App management
- Manage and configure device through app
- - Port: 22 Protocol: TCP
- - Port: 20002 Protocol: TCP
- OTHERS
- Certification: CE, RoHS

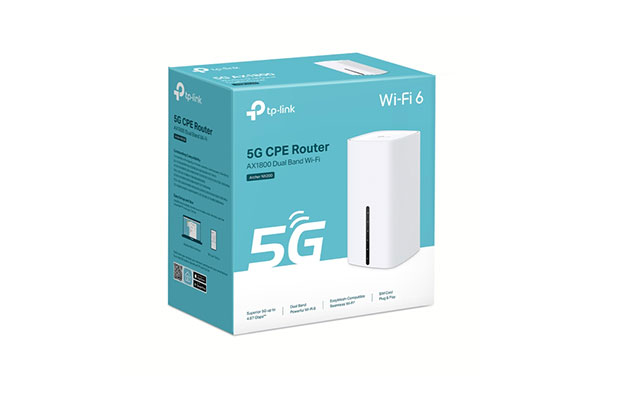

- Package Content:
- - 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
- - 1.5m Power Adapter
- - RJ45 Ethernet Cable
- - Quick Installation Guide
- System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
- - Java-enabled browser
- - Nano SIM Card
- Environment:
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Warranty: 3year on part.
