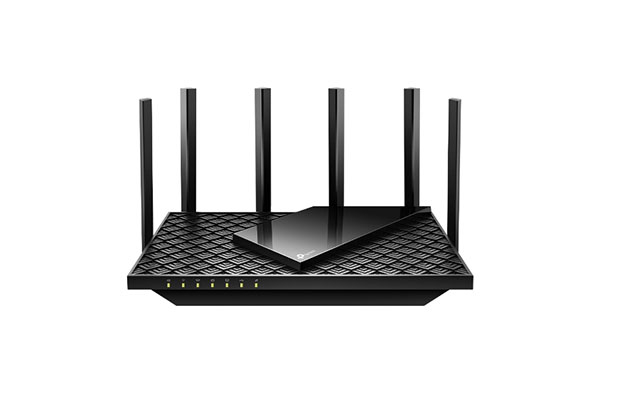

TP-Link Archer AX72 Pro AX5400 Multi-Gigabit WiFi 6 Router
$95.00
- Part Number: Archer AX72 Pro
- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.†
- Connect More, Do More – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
- More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
- Warranty: 3-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: Archer AX72 Pro
- WIRELESS
- Standards and Protocols Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: AX5400
- - 5 GHz: 4804 Mbps (802.11ax, HE160)
- - 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range: 3 Bedroom Houses
- 6× Fixed High-Performance Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
- Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM
- Improves transmission power to strengthen signal coverage
- 4T4R
- Multiple streams in the same band strengthen the fault tolerance in transmission
- WiFi Capacity: High
- Dual-Band
- Allocate devices to different bands for optimal performance
- 4×4 MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- OFDMA
- Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness
- Improves network efficiency by limiting excessive occupation
- DFS
- Access an extra band to reduce congestion
- 6 Streams
- Connect your devices to more bandwidth
- Working Modes Router Mode
- Access Point Mode
- SECURITY
- Network Security:
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
- Guest Network: 1× 5 GHz Guest Network & 1× 2.4 GHz Guest Network
- VPN Server:
- - OpenVPN
- - PPTP
- - L2TP
- VPN Client:
- - OpenVPN
- - PPTP
- - L2TP
- WiFi Encryption:
- - WPA
- - WPA2
- - WPA3
- WPA/WPA2-Enterprise (802.1x)
- HARDWARE
- Processor: 1 GHz Dual-Core CPU
- Ethernet Ports:
- - 1× 2.5 Gigabit WAN/LAN Port
- - 1× Gigabit WAN/LAN Port
- - 3× Gigabit LAN Ports

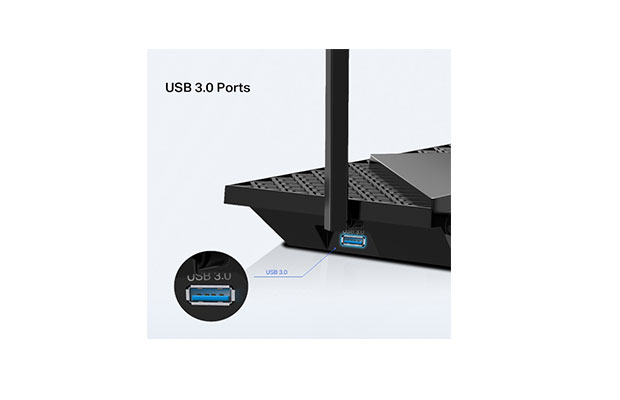

- USB Support:
- 1× USB 3.0 Port
- Supported Partition Formats:NTFS, exFAT, HFS+, FAT32
- Supported Functions: Apple Time Machine
- FTP Server
- Media Server
- Samba Server
- Buttons Wi-Fi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
- Power: 12 V ⎓ 2.5 A
- SOFTWARE
- Protocols: IPv4 & IPv6
- Service Kits: HomeShield
- Learn More>
- OneMesh™: OneMesh™ Supported
- Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
- Learn More>
- All OneMesh Products>
- Parental Controls:
- HomeShield Parental Controls
- - Custom Profiles
- - Professional Content Filter Library
- - Family Time
- - Bedtime
- - Off Time
- - Time Rewards
- - Family Online Time Ranking
- - Pause the Internet
- - Weekly and Monthly Reports
- WAN Types:
- - Dynamic IP
- - Static IP
- - PPPoE
- - PPTP
- - L2TP
- Quality of Service: QoS by Device
- Cloud Service:
- - Auto Firmware Upgrade
- - TP-Link ID
- - DDNS
- NAT Forwarding:
- - Port Forwarding
- - Port Triggering
- - DMZ
- - UPnP
- - Virtual Server
- IPTV:
- - IGMP Proxy
- - IGMP Snooping
- - Bridge
- - Tag VLAN
- DHCP:
- - Address Reservation
- - DHCP Client List
- - Server
- DDNS:
- - TP-Link
- - NO-IP
- - DynDNS
- Management Features: Tether App & Webpage
- OTHER
- Network Services Enabled by Default: Web Server
- Manage and configure device through web (HTTP/HTTPS)
- • Port: 80/443 Protocol: TCP
- DNS
- DNS
- • Port: 53 Protocol: TCP & UDP
- DHCP Server
- IP address assignment (DHCP)
- • Port: 67 Protocol: UDP
- App management
- Manage and configure device through app
- • Port: 20001 Protocol: TCP
- • Port: 30001 Protocol: TCP
- • Port: 20002 Protocol: UDP
- System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
- Certifications FCC, CE, RoHS
- Environment:
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- TEST DATA
- WiFi Transmission Power CE:
- <20dBm{2.4GHz}
- <23dBm{5.15GHz~5.35GHz}
- <30dBm{5.47GHz~5.725GHz}
- FCC:
- <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
- <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
- WiFi Reception Sensitivity 2.4GHz:
- 11ac VHT20 MCS0:-94.5dBm
- 11ac VHT20 MCS8:-72.5dBm
- 11ac VHT40 MCS0:-92.5dBm
- 11ac VHT40 MCS9:-69.5dBm
- 11ax HE20 MCS0:-95dBm
- 11ax HE20 MCS11:-64.5dBm
- 11ax HE40 MCS0:-92.5dBm
- 11ax HE40 MCS11:-62dBm
- 5GHz:
- 11ac VHT20 MCS0:-97dBm
- 11ac VHT20 MCS8:-74dBm
- 11ac VHT40 MCS0:-95dBm
- 11ac VHT40 MCS9:-70dBm
- 11ac VHT80 MCS0:-91.5dBm
- 11ac VHT80 MCS9:-66dBm
- 11ac VHT160 MCS0:-86dBm
- 11ac VHT160 MCS9:-61dBm
- 11ax HE20 MCS0:-95dBm
- 11ax HE20 MCS11:-64dBm
- 11ax HE40 MCS0:-91.5dBm
- 11ax HE40 MCS11:-62dBm
- 11ax HE80 MCS0:-88dBm
- 11ax HE80 MCS11:-58dBm
- 11ax HE160 MCS0:-85.5dBm
- 11ax HE160 MCS11:-55dBm
- PHYSICAL
- Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)
- Package Content
- - Wi-Fi Router Archer AX72
- - Power Adapter
- - RJ45 Ethernet Cable
- - Quick Installation Guide
- Warranty: 3-years on part.
