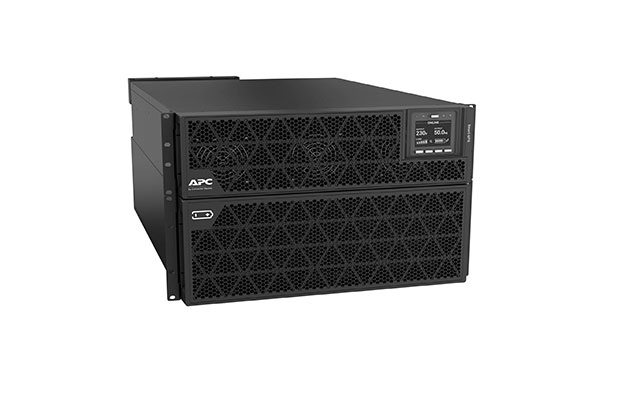

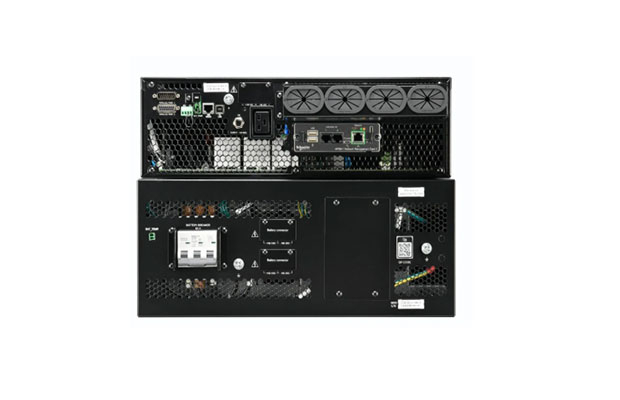

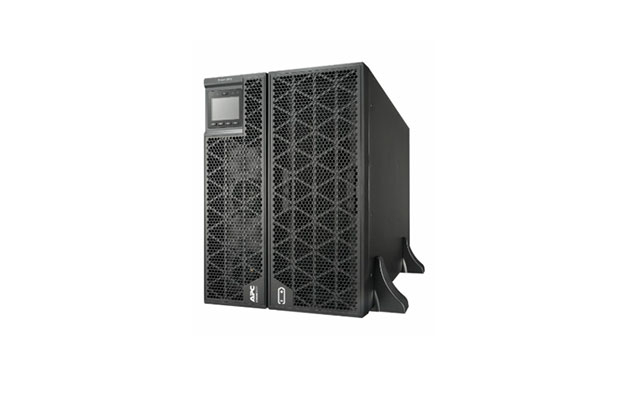

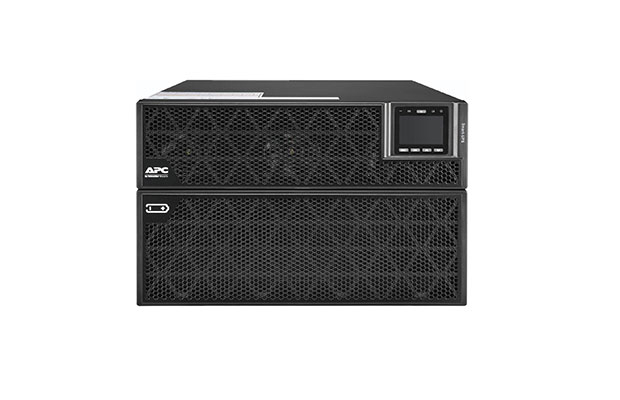

APC Smart-UPS On-Line 20kVA/20kW, Rack/Tower, 230V/380V (SRTG20KXLI)
$9,765.00
- Part Number: RTG20KXLI
- Main Input Voltage: 380...415 V 3 phases 230 V
- Other Input Voltage: 220...240 V
- Main Output Voltage: 380...415 V 3 phases 230 V 1 phase
- Other Output Voltage: 230 V
- Rated power in W: 20000 W
- Rated power in VA: 20000 VA
- Number of rack unit: 7U
- Battery type: Lead-acid battery
- Provided equipment: Smart UPS signalling RS-232 cable
- Mounting mode: Rack-mounted Input network
- Warranty: 3 years repair or replace (excluding battery) and 2 years for battery.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: RTG20KXLI
- Overview
- Lead time: Usually in Stock
- Main
- Run time for load: 20000 W
- Min-max: 2000-20000 W: 3min 1s
- Max. Capacity Used: 100 %
- Main Input Voltage: 230 V AC 1 phase, 400 V AC 3 phases
- Input voltage: 380...415 V, 220...240 V
- Maximum input current: 87 A
- Input harmonic distortion: Less than 5 % for full load
- Load power factor: From 0.9 leading to 1 lagging
- Switching current capacity: 125 A
- Input voltage limits: 160...285 V full load, 100...285 V half load
- Number of input connectors: 1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)
- Network frequency: 40...70 Hz auto-sensing
- Output voltage: 230 V AC 1 phase, 400 V AC 3 phases
- Output voltage: 230 V
- Rated power in W: 20000 W
- rated power in VA: 20000 VA
- Output connection type: 1 IEC 60320 C19
- Output connector type:
- -Hard wire 5 wire (3P + N + E) for 1 zone(s)
- -Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Bypass type: Internal bypass (automatic and manual)
- Crest factor: 3 : 1
- Harmonic distortion: Less than 2 %
- Maximum configurable power in VA: 20000 VA
- Maximum configurable power in W: 20000 W
- Output overload operation: 60 seconds at 125% and 30 seconds at 150%
- UPS type: Double conversion online
- Wave type: Sine wave
- Efficiency: 94.5 %
- Output frequency: 50/60 Hz +/- 4 Hz sync to mains
- Complementary
- Additional information:
- - Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
- - Configurable for 220 : 230 or 240 nominal output voltage
- Battery type: Lead-acid external included
- Emergency power off: Yes
- Free slots: 0
- Preinstalled device: Network management card 3 with environmental monitoring
- Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity: Serial port, USB port & Pre-installed network management card 3
- Surge energy rate: 600 J
- Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Number of rack unit: 7U
- Colour: Black (RAL 9005)
- Height: 306 mm
- Width: 440 mm
- Depth: 835 mm
- Net weight: 142.5 kg
- Mounting location: Front
- Mounting preference: Lower
- Mounting mode: ack-mounted
- Two post mountable: 0
- USB compatible: Yes
- Mounting position: Horizontal
- Mounting mode: Rack-mounted with kit sold separately
- Provided equipment:
- - 1 x USB cable
- - 1 x RJ45 cable
- - 2 x rack mounting brackets
- - 2 x stabilization/wall mounting feet
- - 2 x installation manual
- - 1 x C13-C14 power cord
- - 1 x external battery pack
- - 1 x battery cable
- Number of power module filled slots: 0
- Number of power module free slots: 0
- Redundant: No
- Range of product: Smart-UPS On-Line
- Product or component type: Uninterruptible power supply (UPS)
- Environment
- Product certifications: CE, UKCA, TISI
- Standards
- - EN/IEC 62040-1:2019/A11:2021
- - EN/IEC 62040-2:2006/AC:2006
- - EN/IEC 62040-2:2018
- Ambient air temperature for operation: 0…40 °C
- Ambient air temperature for storage: -15…45 °C
- Storage altitude: 0…15000 m
- IP degree of protection: IP20
- Relative humidity: 0…95 % non-condensing
- Storage Relative Humidity: 0…95 % non-condensing
- Acoustic level: 58 dBA
- Heat dissipation: 3821 Btu/h
- Operating altitude: 0...3000 m
- Batteries & Runtime
- Run Time: View Runtime Graph
- Efficiency: View Efficiency Graph
- Battery type: Lead-acid battery
- Battery voltage: +/- 192 V
- Extended runtime: 1
- Number of battery filled slots: 0
- Number of battery free slots: 0
- Battery recharge time: 4 h
- Number of battery replacement quantity: 2
- Replacement battery: APCRBC172
- Battery charger power: 2160 W rated
- Packing Units
- Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
- Package 1 Height: 53.5 cm
- Package 1 Width: 79.0 cm
- Package 1 Length: 59.0 cm
- Package 1 Weight: 157.2 kg.
