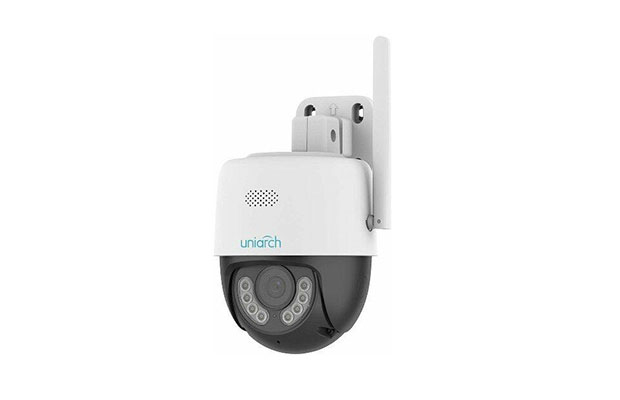

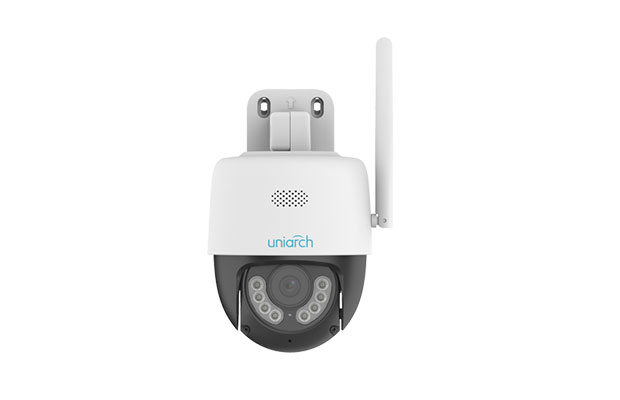

Uniarch Uho-P1A-M5F4D 5M PT Outdoor Wifi Camera

~~$ 58.00~~ $ 54.00

Part Number: Uho-P1A-M5F4D
High quality image with 5MP, 1/2.7"CMOS sensor
5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
Ultra 265, H.265, H.264
Support digital WDR (Wide Dynamic Range)
Built-in Mic & Speaker, support two-way audio, offer better interaction
Support sound and light warning, makes warning and alarming more noticeable
Smart IR, up to 30 m (98 ft) IR and 10m (33 ft) warm light distance, suitable for more scenes
Self-contained bracket, support two kinds of mounting
Supports 256 GB Micro SD card
Wi-Fi connection and easy installation
IP66 ingress protection
Warranty: 1-year on part.

Order Now

Specification

Part Number: Uho-P1A-M5F4D
Camera
Sensor: 1/2.7" progressive scan, 5.0 megapixel, CMOS
Min. Illumination: Colour:0.005 lux (F1.6,AGC ON); 0 lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, shutter time: 1s ~ 1/100000s
WDR: DWDR
S/N: >52 dB
Lens
Lens type: 4mm@F1.6
Digital Zoom: 4
Iris: Fixed
Field of View (H): 93.6°
Field of View (V): 48.9°
Field of View (D): 98.3°
DORI
DORI Distance: Lens (mm): 4mm; Detect (m): 78.3 (256.8ft); Observe (m): 31.3 (102.7ft) ; Recognize (m): 15.7 (51.4ft); Identify (m): 7.8 (25.7ft)
Illuminator
IR Range: Up to 30m (98ft)
Warm Light Range: Up to 10m (33ft)
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
Frame Rate: Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate: 128 Kbps~6144 Kbps
ROI: Up to 8 areas
Video Stream: Dual streams
OSD: Up to 2 OSDs
Privacy Mask: Support
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Flip Vertical/Flip Horizontal/180°
HLC: N/A
BLC: N/A
Defog: Digital Defog
Events
Basic Detection: Motion detection, Ultra motion detection, Audio detection
Auto tracking: Support
General Function: IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression: G.711U,G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz
Storage
Edge Storage: Micro SD, up to 256 GB
Network Storage: ANR
Network
Wi-Fi: 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration: API
Client: Uniarch Client; Uniarch APP
Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range: 0° ~ 345°
Pan Speed: 1°/s ~ 40°/s; Preset speed: 40°/s
Tilt Range: 0° ~ 90°
Tilt Speed: 1°/s ~ 30°/s; Preset speed: 30°/s
Number of Presets: 20
Home Position: Support
Interface
Built-in Mic: Support
Built-in Speaker: Support
Wi-Fi: Support
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Certifications
EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130); FCC (FCC 47 CFR part15 B)
RF: FCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP66 (IEC 60529)
General
Power: DC 12V ± 25%
Power consumption: Max 10.0W
Power Interface: Ø 5.5mm coaxial power plug
Working Environment: -30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection: 4KV
Reset Button: Support
LED indicator: 1, red/green
Dimensions (Ø x H): Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”)
Weight: 0.53kg (1.17lb).
