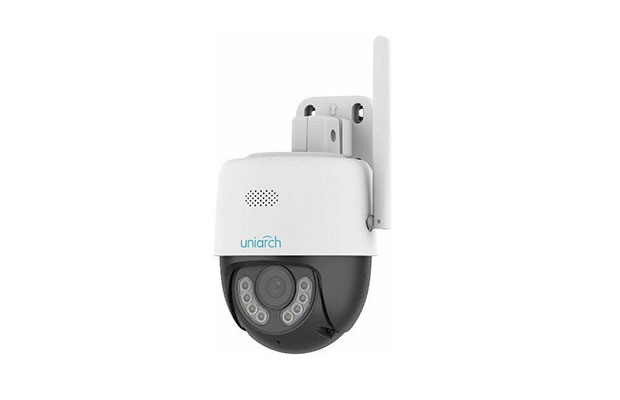

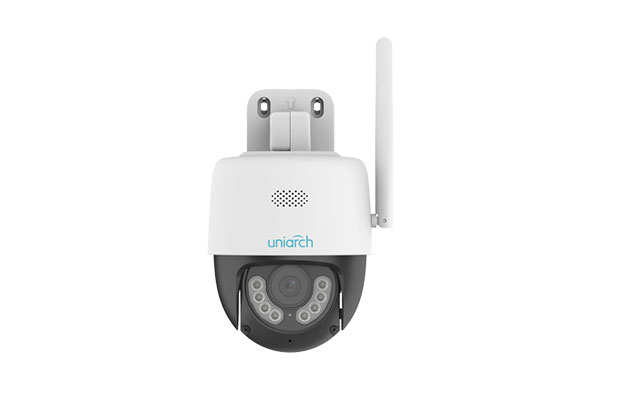

Uniarch Uho-P1A-M3F4D 3M PT Outdoor Wifi Camera

~~$ 52.00~~ $ 48.00

Part Number: Uho-P1A-M3F4D
High quality image with 3MP, 1/2.8"CMOS sensor
2304*1296@20fps in the main stream
Ultra 265, H.265, H.264
Support digital WDR (Wide Dynamic Range)
Built in Mic & Speaker, support two way audio, offer better interaction
Support sound and light warning, makes warning and alarming more noticeable
Smart IR, up to 30 m (98 ft) IR and 10m (33 ft) warm light distance, suitable for more scenes
Self contained bracket, support two kinds of mounting
Supports 512 GB Micro SD card
Wi Fi connection and easy installation
IP66 ingress protection
The front face is made of grapheme, which has better heat dissipation and more environmental protection
Warranty: 1-year on part.

Order Now

Specification

Part Number: Uho‑P1A‑M3F4D
Camera
Max Resolution: 3 MP
Sensor: 1/2.8" CMOS
Min. Illumination: Color: 0.005Lux (F1.6, AGC ON); 0 Lux with IR on
Day/Night: IR‑cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
S/N: >52 dB
WDR: DWDR
Lens
Digital Zoom: 4X
Focal Length: 4.0 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 90.5°
Field of View (V): 44.4°
Field of View (D): 111.3°
DORI
DORI Distance (Lens): 4.0mm
DORI Distance (Detect): 73.5 (241.0ft)
DORI Distance (Observe): 29.4 (96.4ft)
DORI Distance (Recognize): 14.7 (48.2ft)
DORI Distance (Identify): 7.3 (24.1ft)
Illuminator
Supplemental Light: Dual light
Illumination Distance (IR): Up to 30m (98ft)
Illumination Distance (Warm Light): Up to 10m (33ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
Frame Rate: Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: 640*360, Max 20fps;
Video Bit Rate: 128 Kbps to 2048 Kbps
U‑code: Support
OSD: Up to 2 OSDs
Privacy Mask Support (only NVR)
ROI: Up to 8 areas
Video Stream: Dual Streams
White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip Vertical, Flip Horizontal, 180°
Dewarping: N/A
HLC: N/A
BLC: N/A
Defog: Digital Defog
Events
Basic Detection: Human Body Detection, Motion Detection, Audio Detection
General Function: IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Intelligent
Auto Tracking: Support
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two‑way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz
Storage
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR
Network
Wi‑Fi: 2.4G Wi‑Fi (IEEE802.11b/g/n), built‑in antenna
Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration: API
Client: Uniarch Client, Uniarch app
Web Browser: Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi‑Fi
Wireless Standards: IEEE802.11b/g/n
Frequency Range: 2.4 GHz to 2.4835 GHz
Channel Bandwidth: 20 MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK & 802.11g/n: OFDM/HT
Wi‑Fi Security: 64/128‑bit WEP, WPA‑PSK/WPA2‑PSK
Transmit Power: 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity: 802.11b: ‑90 dBm@11 Mbps (Typical) 802.11g: ‑75 dBm@54 Mbps (Typical) 802.11n: ‑74 dBm@150 Mbps (Typical)
Transmission Rate: 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
PTZ
Pan Range: 0° ~ 345°
Pan Speed: 1°/s ~ 40°/s
Preset speed: 40°/s
Tilt Range: 0° ~ 90°
Tilt Speed: 1°/s ~ 30°/s
Preset speed: 30°/s
Number of Presets: 20
Interface
Audio I/O: N/A
Alarm I/O: N/A
Built‑in Mic: Support
Built‑in Speaker: Support
WIFI: Support
Network: 1 × RJ45 10M/100M Base-TX Ethernet
Certification
EMC: CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)
FCC: (FCC 47 CFR part15 B)
RF: FCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489‑1, EN 301 489‑17, EN 300 328, EN 62311)
Safety: CE LVD (EN 62368‑1)
Environment: CE‑RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU);
Protection: IP66 (IEC 60529)
General
Power: DC 12V±25%
Power consumption: Max 10.0W
Power Interface: Ø5.5 mm coaxial power plug
Working Environment: ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing)
Storage Environment: ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing)
Surge Protection: 4 KV
Reset Button: Support
LED Indicator: 1, red/green
Dimensions: Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”)
Weight: 0.53kg (1.17lb).
